Air - Bag

Diagram showing the glove compartment area with arrows indicating screw locations and a hand removing a panel component

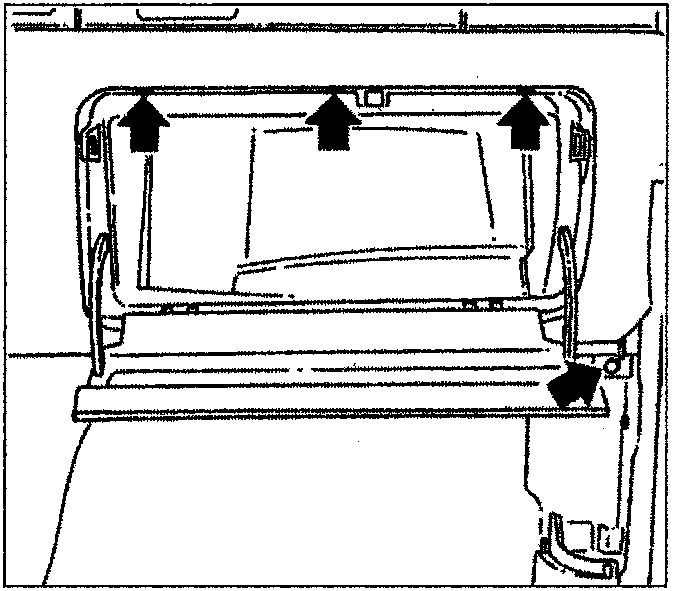

  • unscrew the fixing screws of the under-dash trim located in the storage compartment;
Diagram showing a hand using a tool to remove a trim piece near the steering column and glove compartment hinge area

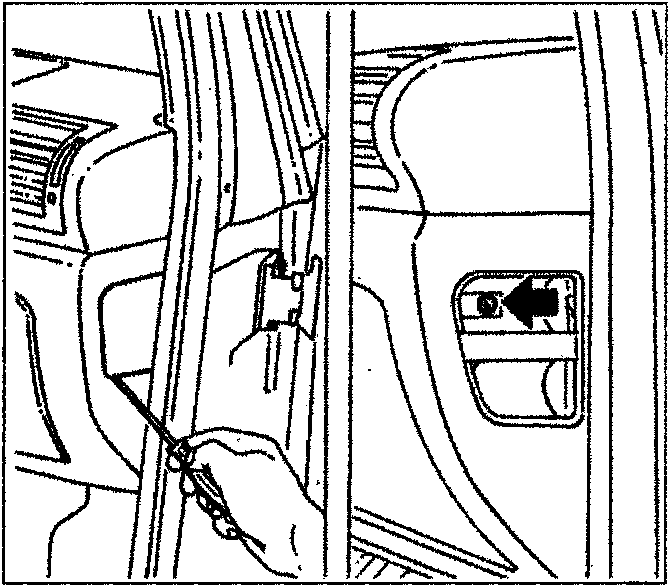

  • detach the press-fit trim, unscrew the indicated fixing screw, then slide out the under-dash trim;
Diagram showing electrical connectors being disconnected behind the dashboard area

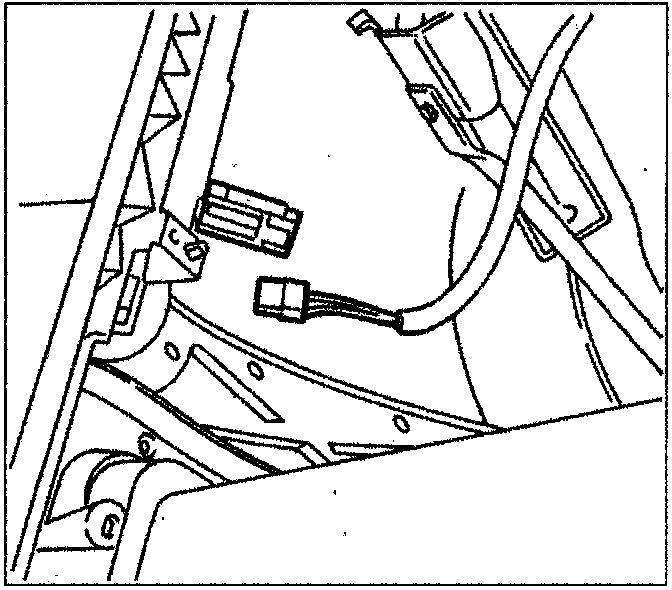

  • disconnect the electrical connector of the cigarette lighter, then detach the under-dash trim from the vehicle;
