Clutch pedal - r+r

Operation 3330B26 · Pedal unit

Removing

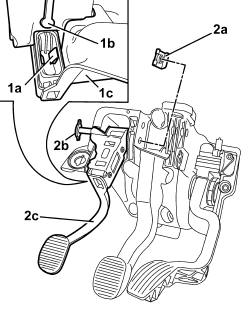

1. Undo clips (1a) and disonnnect rod (1b) from brake pedal (1c).

2. Remove the clip (2a), withdraw pin (2b) and remove clutch pedal (2c).

Refitting

Fit the clutch pedal, insert the pin and secure with the clip.

Connect the brake rod and secure with the appropriate fastening.
