Pedal assembly - r r
Removing
- 5530B56 BATTERY DRIP TRAY COVER - R.R.
Disconnect the battery negative terminal.
1. Disconnect the electrical connection for the accelerator potentiometer.
| Name | Connector | |
|---|---|---|
| 1 | Accelerator pedal potentiometer | K55 |
2. Disconnect the electrical connection from the switch on the brake pedal.
| Name | Connector | |
|---|---|---|
| 2 | Brake pedal switch | I30 |
3. Disconnect the electrical connection from the switch on the clutch pedal.
| Name | Connector | |
|---|---|---|
| 3 | Clutch pedal switch | I31 |

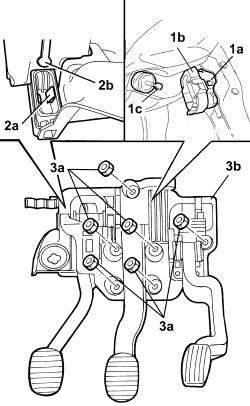

1. Undo clips (1a) to release detent (1b) and disconnect rod (1c) from the brake pedal.
2. Undo clips (2a) to disconnect rod (2b) from the clutch pedal.
3. Undo the nuts (3a) and remove the pedal assembly (3b).
Refitting
Fit the pedal into its seat and tighten the retaining nuts to the specified torque.
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| Nut | COMPLETE PEDAL ASSEMBLY | M8 | 2.2 |
Connect the brake and clutch pedal rods.
Reconnect the electrical connection for the accelerator potentiometer.
| Name | Connector | |
|---|---|---|
| Accelerator pedal potentiometer | K55 |
Reconnect the electrical connection to the switch on the brake pedal.
| Name | Connector | |
|---|---|---|
| Brake pedal switch | I30 |
Reconnect the electrical connection to the switch on the clutch pedal.
| Name | Connector | |
|---|---|---|
| Clutch pedal switch | I31 |
Connect the battery negative terminal.
