Rear fuel delivery line - r r

Operation 1040b36 · Fuel supply/return circuit pipe

1.2 16v

Removing

Position the vehicle on the ramp.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Disconnect the battery negative terminal.

Raise the vehicle.

1. Unscrew the bolts securing the rubber block to the rear exhaust pipe section.

2. Release the flexible block from the pin on the body and unscrew the bolt securing the central section coupling collar.

Lower the rear silencer

1.4 16v

Removing

Position the vehicle on the ramp

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Disconnect the battery negative terminal.

Raise the car.

1. Unscrew the bolts securing the rubber block to the rear exhaust pipe section.

2. Release the flexible block from the pin on the body and unscrew the bolt securing the central section coupling collar.

Lower the rear silencer

1.6 16v

Removing

Position the vehicle on the ramp.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Disconnect the battery negative terminal.

Raise the vehicle.

1. Unscrew the bolts securing the rubber block to the rear exhaust pipe section.

2. Release the flexible block from the pin on the body and unscrew the bolt securing the central section coupling collar.

Lower the rear silencer

1.8 16v

Removing

Position the vehicle on the ramp.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Disconnect the battery negative terminal.

Raise the vehicle.

1. Unscrew the bolts securing the rubber block to the rear exhaust pipe section.

2. Release the flexible block from the pin on the body and unscrew the bolt securing the central section coupling collar.

Lower the rear silencer

2.4 20v

Removing

Position the vehicle on the ramp.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Disconnect the battery negative terminal.

Raise the car.

1. Unscrew the bolts securing the rubber block to the rear exhaust pipe section.

2. Release the flexible block from the pin on the body and unscrew the bolt securing the central section coupling collar, then lower the rear silencer

1.9 JTD 8v

Removing

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

- 1076B42 CENTRE EXHAUST PIPE COMPLETE WITH: FLEXIBLE CONNECTOR - TORQUE CONVERTER AND CENTRE SILENCER -R.R.

- 1040A10 fuel tank - r + r and decant fuel

1. Disconnect the rear pipe from the quick-release fitting on the fuel pump.

2. Release the pipes from the clips (2a) on the tank, then remove the fuel delivery pipe (2b).

1.9 JTD 16v

Removing

- 1040A10 fuel tank - r + r and decant fuel

1. Disconnect the pipe from the quick-release fitting on the fuel pump.

2. Release the pipes from the clips (2a) on the tank, then remove the fuel delivery pipe (2b).

1.2 16v

Release the handbrake cables from the clips on the tank.

1. Remove the retaining springs (1a), undo the bolts (1b) and remove the rear heat shield (1c).

1.4 16v

Release the handbrake cables from the clips on the tank.

1. Remove the retaining clips (1a), undo the bolts (1b) and remove the rear heat shield (1c).

1.6 16v

Release the handbrake cables from the clips on the tank.

1. Remove retaining clips (1a), unscrew bolts (1b) and remove lower heat shield (1c).

1.8 16v

Release the handbrake cables from the clips on the tank.

1. Remove the retaining springs (1a), undo the bolts (1b) and remove the rear heat shield (1c).

2.4 20v

Release the handbrake cables from the clips on the tank.

1. Remove the retaining clips (1a), undo the bolts (1b) and remove the rear heat shield (1c).

1.9 JTD 8v

Refitting

Fit the fuel delivery pipe.

- 1040A10 fuel tank - r + r and decant fuel

- 1076B42 CENTRE EXHAUST PIPE COMPLETE WITH: FLEXIBLE CONNECTOR - TORQUE CONVERTER AND CENTRE SILENCER -R.R.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

- 3380A04 handbrake - check travel

1.9 JTD 16v

Refitting

Fit the fuel delivery pipe.

- 1040A10 fuel tank - r + r and decant fuel

- 3380A04 handbrake - check travel

1.2 16v

1. Undo bolts (1a) and remove the fuel tank right guard (1b).

1.4 16v

1. Unscrew retaining bolts (1a) and remove the fuel tank right guard (1b).

1.6 16v

1. Unscrew retaining bolts (1a) and remove the fuel tank right guard (1b).

1.8 16v

1. Undo bolts (1a) and remove the fuel tank right guard (1b).

2.4 20v

1. Unscrew retaining bolts (1a) and remove the fuel tank right guard (1b).

1.2 16v

1. Disconnect the rapid attachment for the supply pipe.

1.4 16v

1. Disconnect the rapid attachment for the supply pipe.

1.6 16v

1. Disconnect the rapid attachment for the supply pipe.

1.8 16v

1. Disconnect the rapid attachment for the supply pipe.

2.4 20v

1. Disconnect the rapid attachment for the supply pipe.

1.2 16v

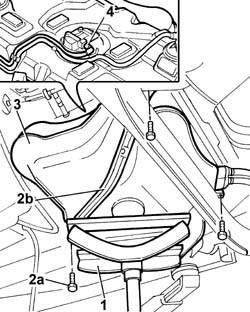

1. Position a hydraulic jack, complete with suitable support, under the fuel tank.

2. Undo the bolts (2a) and remove the fuel tank support belts (2b).

3. Lower the hydraulic jack, disconnect the rear fuel delivery pipe from the connection on the submerged pump and remove.

1.4 16v

1. Position a hydraulic jack, complete with suitable support, under the fuel tank.

2. Undo the bolts (2a) and remove the fuel tank support belts (2b).

3. Lower the hydraulic jack, disconnect the rear fuel delivery pipe from the connection on the submerged pump and remove.

1.6 16v

1. Position a hydraulic jack, complete with suitable support, under the fuel tank.

2. Undo the bolts (2a) securing the fuel tank support belts (2b).

3. Lower the hydraulic jack, disconnect the rear fuel delivery pipe from the connection on the submerged pump and remove.

1.8 16v

1. Position a hydraulic jack, complete with suitable support, under the fuel tank.

2. Undo the bolts (2a) and remove the fuel tank support belts (2b).

3. Lower the hydraulic jack, disconnect the rear fuel delivery pipe from the connection on the submerged pump and remove.

2.4 20v

1. Position a hydraulic jack, complete with suitable support, under the fuel tank.

2. Undo the bolts (2a) and remove the fuel tank support belts (2b).

3. Lower the hydraulic jack and then the fuel tank.

4. Disconnect the rear fuel delivery pipe from the connection on the submerged pump and remove.

1.2 16v

Refitting

Fit the rear fuel delivery pipe and connect to the connection on the submerged pump.

Use the support tool to position the fuel tank in its seat.

Tighten the bolts fixing the fuel tank support belts.

Remove the hydraulic jack, complete with support from beneath the fuel tank.

Connect the rapid attachment connecting the fuel supply pipe to the front section.

Fit the fuel pump right guard.

Fit the heat shield and tighten the retaining bolts to the body.

Position the heat shield retaining clips.

Tighten the bolt securing the rear silencer rubber block to the body.

Connect the battery negative terminal.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Remove the car from the ramp.

1.4 16v

Refitting

Fit the rear fuel delivery pipe and connect to the connection on the submerged pump.

Use the support tool to position the fuel tank in its seat.

Tighten the bolts fixing the fuel tank support belts.

Remove the hydraulic jack, complete with support from beneath the fuel tank.

Connect the rapid attachment connecting the fuel supply pipe to the front section.

Fit the fuel pump right guard.

Fit the heat shield and tighten the retaining bolts to the body.

Position the heat shield retaining clips.

Tighten the bolt securing the rear silencer rubber block to the body.

Connect the battery negative terminal.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Remove the car from the ramps.

1.6 16v

Refitting

Fit the rear fuel delivery pipe and connect to the connection on the submerged pump.

Use the support tool to position the fuel tank in its seat.

Tighten the bolts fixing the fuel tank support belts.

Remove the hydraulic jack, complete with support from beneath the fuel tank.

Connect the rapid attachment connecting the fuel supply pipe to the front section.

Fit the fuel pump right guard.

Fit the heat shield and tighten the retaining bolts to the body.

Position the heat shield retaining clips.

Tighten the bolt securing the rear silencer rubber block to the body.

Connect the battery negative terminal.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Remove the car from the ramp.

1.8 16v

Refitting

Fit the rear fuel delivery pipe and connect to the connection on the submerged pump.

Use the support tool to position the fuel tank in its seat.

Tighten the bolts fixing the fuel tank support belts.

Remove the hydraulic jack, complete with support from beneath the fuel tank.

Connect the rapid attachment connecting the fuel supply pipe to the front section.

Fit the fuel pump right guard.

Fit the heat shield and tighten the retaining bolts to the body.

Position the heat shield retaining clips.

Tighten the bolt securing the rear silencer rubber block to the body.

Connect the battery negative terminal.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Remove the car from the ramp.

2.4 20v

Refitting

Fit the rear fuel delivery pipe and connect to the connection on the submerged pump.

Use the support tool to position the fuel tank in its seat.

Tighten the bolts fixing the fuel tank support belts.

Remove the hydraulic jack, complete with support from beneath the fuel tank.

Connect the rapid attachment connecting the fuel supply pipe to the front section.

Fit the fuel pump right guard.

Fit the heat shield and tighten the retaining bolts to the body.

Position the heat shield retaining clips.

Tighten the bolt securing the rear silencer rubber block to the body.

Connect the battery negative terminal.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Remove the car from the ramps.
