Wiring diagrams and electrical functions Brake lights location components
BRAKE LIGHTS LOCATION COMPONENTS
2.0 TB, 2.4 20V

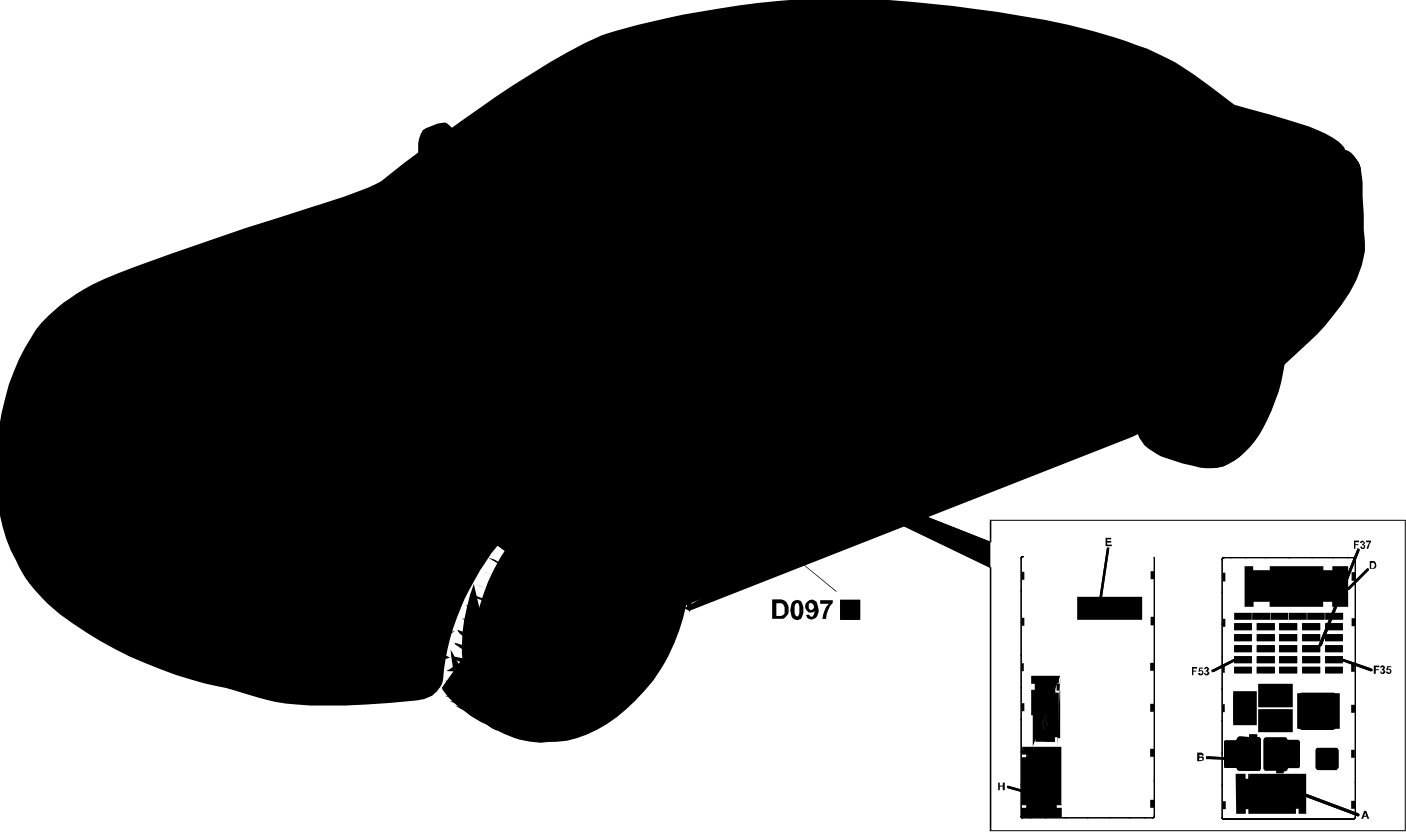

Location Components
Components
Component code Name Assembly reference B002 Junction unit under dashboard B045 Luggage compartment junction unit (CVB) 5505A C022 Centre dashboard earth C030 Left rear earth C031 Right rear earth D006 Front/rear coupling D097 Short circuit coupling E050 Instrument panel F030 Left rear light cluster 5540A F031 Right rear light cluster 5540A F040 Additional rear light (third brake light) 5550D H001 Ignition switch I030 Interruttore pedale freno 5520G M001 Body computer M010 Engine management control unit 1056B
2.4 JTD 20V
Location Components
Components
Component code Name Assembly reference B002 Junction unit under dashboard B045 Luggage compartment junction unit (CVB) C022 Centre dashboard earth C030 Left rear earth C031 Right rear earth D006 Front/rear coupling D097 Short circuit coupling E050 Instrument panel F030 Left rear light cluster F031 Right rear light cluster F040 Additional rear light (third brake light) H001 Ignition switch I030 Interruttore pedale freno 5520G M001 Body computer M010 Engine management control unit 1056B
2.4 20V, 3.0 V6, 3.2 V6, 2.4 JTD 20V · Automatic Transmission
Location Components
Components
Component code Name Assembly reference B002 Junction unit under dashboard B045 Luggage compartment junction unit (CVB) 5505A C022 Centre dashboard earth C030 Left rear earth C031 Right rear earth D006 Front/rear coupling D097 Short circuit coupling E050 Instrument panel F030 Left rear light cluster 5540A F031 Right rear light cluster 5540A F040 Additional rear light (third brake light) 5550D H001 Ignition switch M001 Body computer I030 Interruttore pedale freno 5520G M010 Engine management control unit 1056B
2.4 JTD 10V
Location Components
Components
Component code Name Assembly reference B002 Junction unit under dashboard B045 Luggage compartment junction unit (CVB) 5505A C022 Centre dashboard earth C030 Left rear earth C031 Right rear earth D006 Front/rear coupling D097 Short circuit coupling E050 Instrument panel F030 Left rear light cluster 5540A F031 Right rear light cluster 5540A F040 Additional rear light (third brake light) 5550D H001 Ignition switch I030 Interruttore pedale freno 5520G M001 Body computer M010 Engine management control unit 1056B
19 Electrical
