Wiring diagrams and electrical functions Reversing lights location components
REVERSING LIGHTS LOCATION COMPONENTS
2.4 20V · Automatic Transmission
Location Components
Components
Component code Name Assembly reference B001 Engine compartment junction unit 5505A B002 Junction unit under dashboard C010 Left front earth C015 Driver''s dashboard earth C022 Centre dashboard earth C031 Right rear earth D040 Rear/boot coupling F035 5540A F036 Right rear light cluster (moving section on boot lid) 5540A H001 Ignition switch K125 RAIN, DUSK AND MISTING SENSOR L050 Automatic transmission solenoid valves 2130B M001 Body computer M062 7040E P065
2.0 TB, 2.4 20V, 2.4 JTD 10V, 2.4 JTD 20V

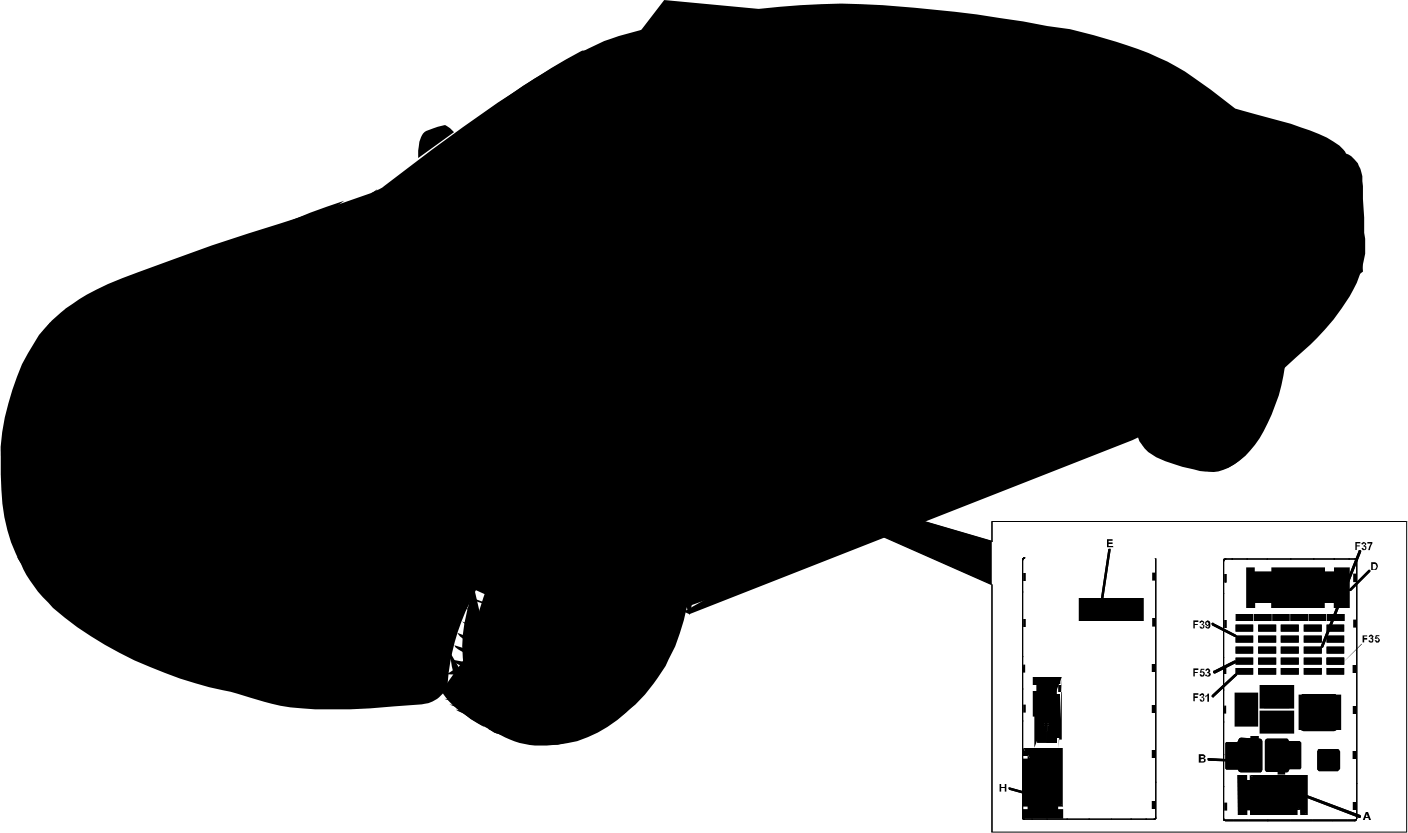

Location Components
Components
2.0 TB, 2.4 20V, 2.4 JTD 10V
Component code Name Assembly reference B001 Engine compartment junction unit 5505A B002 Junction unit under dashboard C015 Driver''s dashboard earth C022 Centre dashboard earth C031 Right rear earth D040 Rear/boot coupling F035 5540A F036 Right rear light cluster (moving section on boot lid) 5540A H001 Ignition switch K125 RAIN, DUSK AND MISTING SENSOR I020 M001 Body computer M062 7040E P065
2.4 JTD 20V · Automatic Transmission
Location Components
Components
Component code Name Assembly reference B001 Engine compartment junction unit 5505A B002 Junction unit under dashboard C010 Left front earth C015 Driver''s dashboard earth C022 Centre dashboard earth C031 Right rear earth D001 Front/dashboard coupling D040 Rear/boot coupling F035 Left rear light cluster (moving section on boot lid) F036 Right rear light cluster (moving section on boot lid) H001 Ignition switch K125 RAIN, DUSK AND MISTING SENSOR L050 Automatic transmission solenoid valves 2130B M001 Body computer M062 Roof control unit (NIM)
3.0 V6, 3.2 V6 · Automatic Transmission
Location Components
Components
Component code Name Assembly reference B001 Engine compartment junction unit 5505A B002 Junction unit under dashboard C010 Left front earth C015 Driver''s dashboard earth C022 Centre dashboard earth C031 Right rear earth D001 Front/dashboard coupling D040 Rear/boot coupling F035 Left rear light cluster (moving section on boot lid) F036 Right rear light cluster (moving section on boot lid) H001 Ignition switch K125 RAIN, DUSK AND MISTING SENSOR I030 Interruttore pedale freno 5520G L050 Automatic transmission solenoid valves 2130B M001 Body computer M062 Roof control unit (NIM) P065
