BRAKE SERVO VACUUM PUMP – Land Rover 300Tdi Engine

ENGINE

44

OVERHAUL

BRAKE SERVO VACUUM PUMP

Remove

1. Ensure that number 1 piston is at TDC.

CAUTION: Rotate crankshaft in a
clockwise direction.

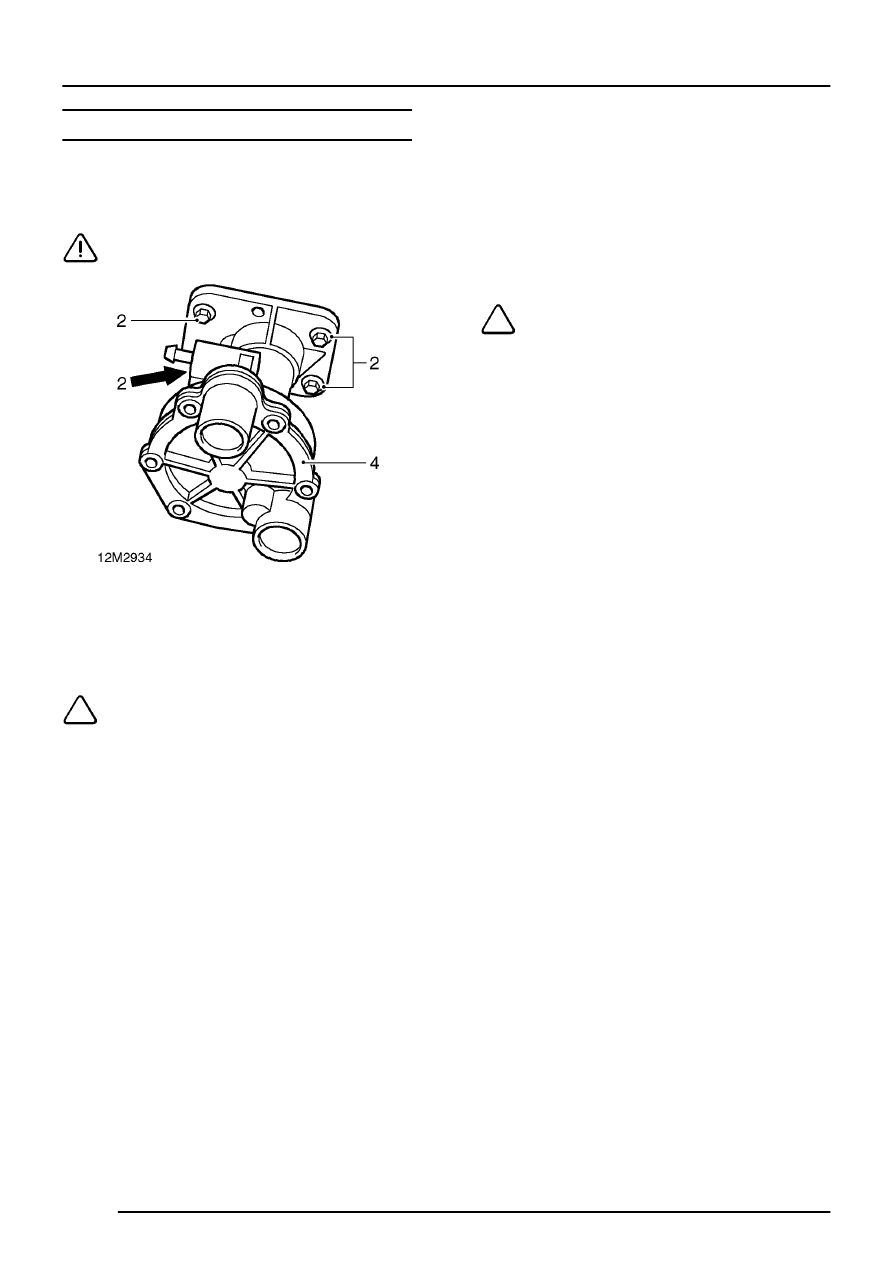

2. Noting their fitted positions, progressively

slacken 5 bolts until all loading is removed from
vacuum pump piston.

NOTE: The sixth bolt was removed during
air cleaner bracket removal.

3. Remove bolts.
4. Remove vacuum pump, remove and discard

gasket.

Refit

1. Remove all traces of gasket using suitable

gasket removal spray and a plastic scraper.

2. Ensure number 1 piston is still at TDC.
3. Fit vacuum pump, fit and finger tighten 5 bolts

in their original positions.

NOTE: The sixth bolt is fitted when air
cleaner bracket is fitted.

4. Tighten bolts progressively by diagonal

selection to 25 Nm.
