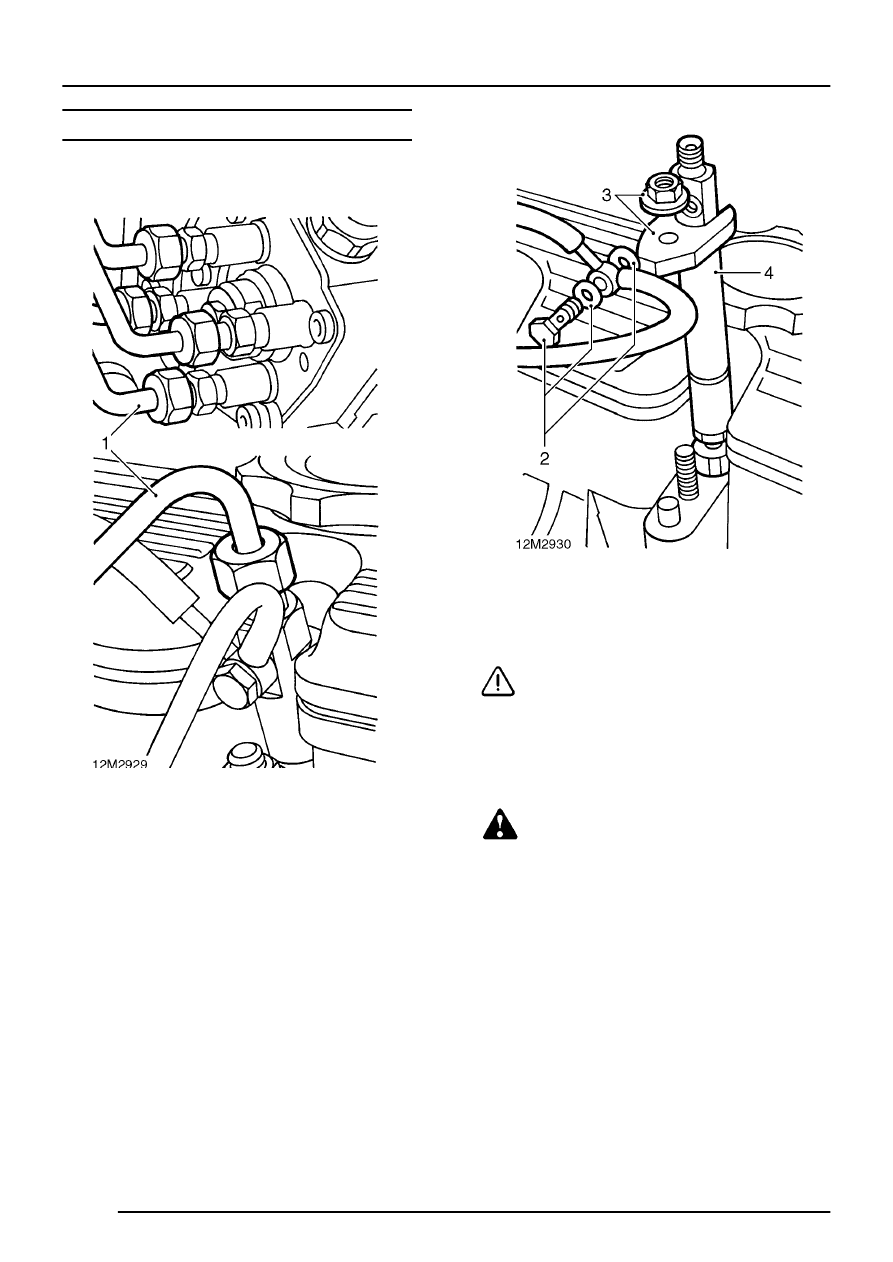

FUEL INJECTORS – Land Rover 300Tdi Engine

ENGINE

42

OVERHAUL

FUEL INJECTORS

Remove

1. Disconnect each pair of fuel pipes from fuel

injection pump and injectors.

2. Remove banjo bolt securing fuel spill return

pipes to injector, remove and discard 2 sealing
washers.

CAUTION: Plug broken connections to
prevent ingress of dirt.

3. Remove nut securing injector clamp, remove

clamp.

4. Remove injector, remove and discard sealing

washer.

WARNING: Do not attempt to remove
injectors using engine compression,
either use an open ended spanner on

injector body and rotate injector until it is
released or use a slide hammer and suitable
adaptor.

5. Repeat above procedures to remove remaining

injectors.
