FUEL LIFT PUMP (page 2 of 2) – Land Rover 300Tdi Engine

ENGINE

OVERHAUL

41

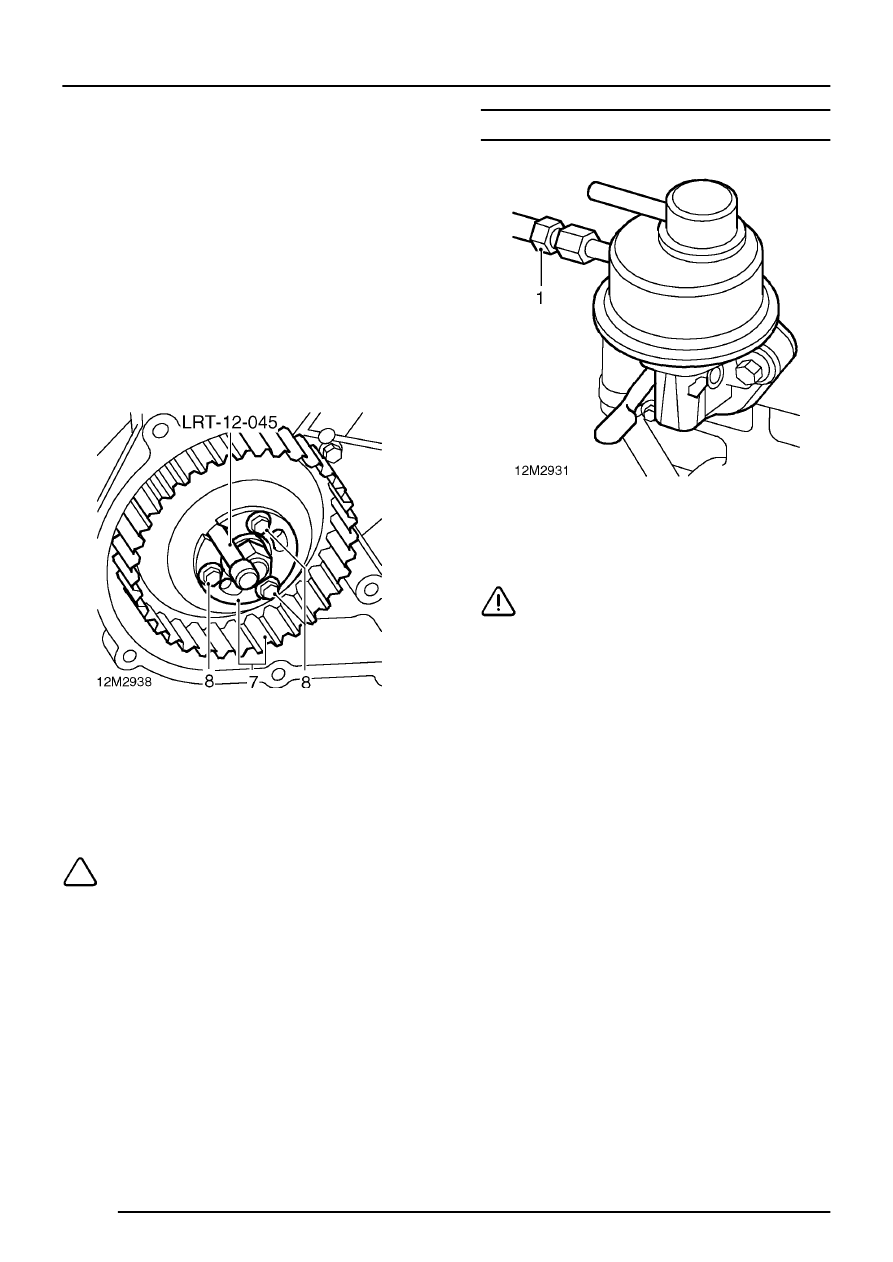

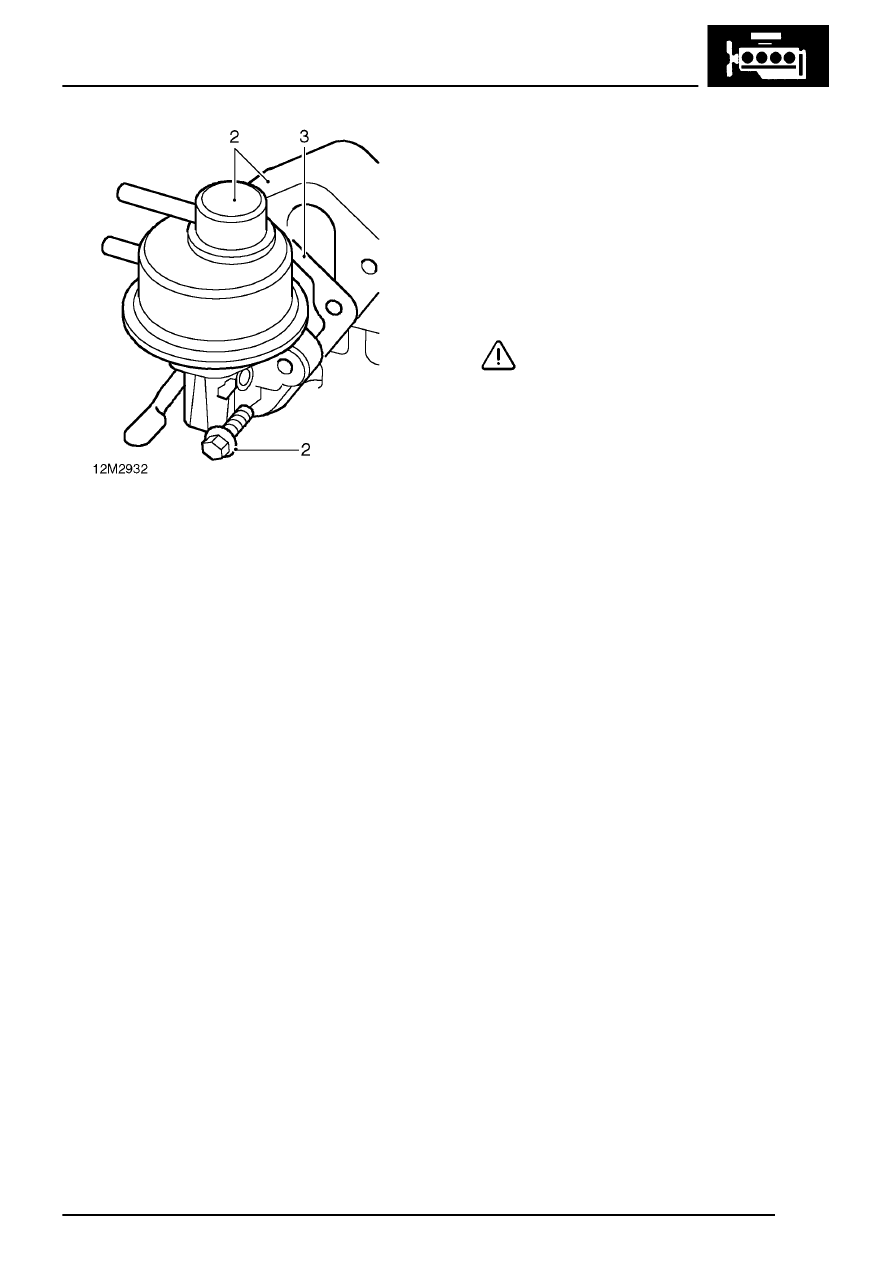

2. Remove 2 bolts securing fuel lift pump to

cylinder block, remove pump, gasket, spacer
and 2nd gasket.

3. Discard gaskets.

Refit

1. Remove all traces of gasket using suitable

gasket removal spray and a plastic scraper.

2. Position new gaskets and spacer to fuel lift

pump.

3. Fit fuel lift pump ensuring that operating lever

is correctly positioned on camshaft.

4. Fit bolts and tighten to 25 Nm.
5. Position fuel delivery pipe to fuel lift pump, fit

banjo bolt and 2 new sealing washers.

CAUTION: Do not fully tighten banjo bolt
until pipe is connected to fuel filter.
