Anti-roll [sway] bar ball joint links panhard rod

ANTI-ROLL [SWAY] BAR BALL JOINT LINKS PANHARD ROD

Service repair no - 60.10.04 Service repair no - 60.10.07

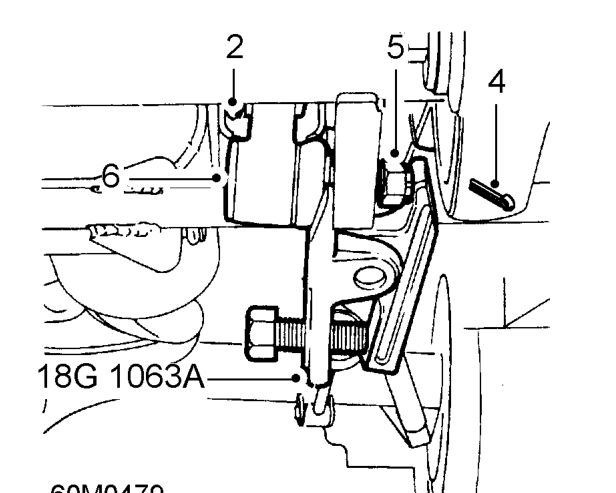

Remove Remove

1. Raise vehicle on a ramp [hoist].

Do not carry out further dismantling if component

2. Remove 2 nuts and bolts securing ball joint links

is removed for access only.

to anti-roll [sway] bar and collect washers and rubber bushes.

3. Release ball joints using special tool LRT-57-018.
4. Remove 2 split pins from castellated nuts.
5. Remove 2 castellated nuts.
6. Remove ball joint links.

Refit

Refit

7. Fit ball joint links, ensuring they point upwards.
8. Fit castellated nuts and tighten to 40 Nm, 30 lbf ft.
9. Fit split pins to castellated nuts.
10. Align anti-roll [sway] bar to ball joint links.
11. Fit bolts, washers, rubber bushes, and new lock nuts securing anti-roll [sway] bar to ball joint
10. Lower vehicle.

links. Tighten bolts to 68 Nm, 50 lbf ft.

12. Lower vehicle.

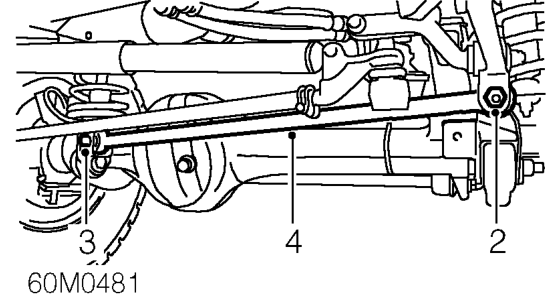

1. Raise vehicle on a ramp [hoist].

2. Remove bolt securing Panhard rod to mounting arm and collect nut
3. Remove bolt securing Panhard rod to axle bracket and collect nut.
4. Remove Panhard rod.
5. Press out flexible bushes.

CAUTION: Ensure pressure is exerted on outer edge of bush, not rubber inner.

6. Fit replacement bushes.
7. Position Panhard rod to axle bracket and mounting arm.
8. Fit nut and bolt securing Panhard rod to axle bracket and tighten to 88 Nm, 65 lbf ft.
9. Fit nut and bolt securing Panhard rod to mounting arm and tighten to 88 Nm, 65 lbf ft.
