Land Rover Defender 90 Workshop Manual (NAS)18 · Front suspension
18 · Steering & suspension

Front road spring bump stop

Make
Land Rover
Model
Defender 90 Workshop Manual (NAS)
Section
Repair › Front road spring bump stop
Front suspensionFront road spring bump stop

FRONT ROAD SPRING BUMP STOP

Service repair no - 60.20.11. Service repair no - 60.30.10.

Remove Remove

  1. Remove front shock absorber. See Front shock absorber
  • CAUTION: Avoid over stretching brake
  • hoses. If necessary loosen hose connector
  • locknuts to allow hoses to follow axle.
  1. Lower axle sufficient to free road spring.
  2. Withdraw road spring.

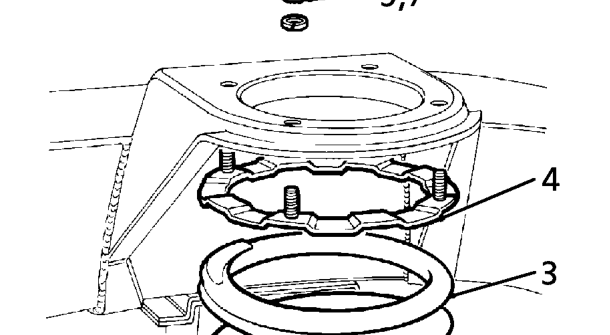

  3. Withdraw shock absorber bracket securing ring.
Remove remove – Withdraw shock absorber bracket securing ring.

Refit

Refit

  1. Fit shock absorber bracket retaining ring. Retain in position with a nut.
  2. Position road spring and raise axle.
  3. Remove nut retaining securing ring.
  4. Fit front shock absorber. See Front shock absorber
  5. Remove fixings.

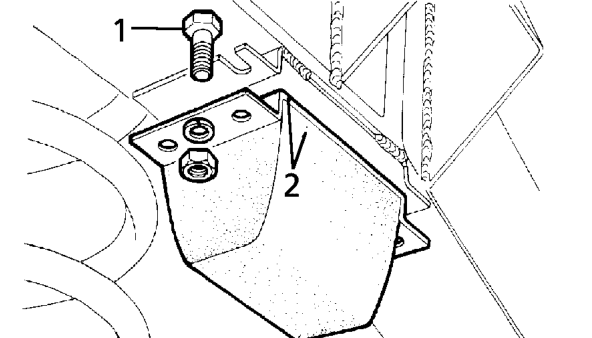

  6. Remove bump stop.
Remove remove – Remove bump stop.
  1. Position bolts in slots in chassis brackets.
  2. Fit bump stop, secure with washers and nuts.
