Self locking nuts anti-roll [sway] bar

SELF LOCKING NUTS ANTI-ROLL [SWAY] BAR

WARNING: Where self locking nuts are Service repair no - 60.10.01 removed, they must be replaced with new nuts of same specification. Remove

Refit

10. Tighten nuts and bolts securing anti-roll [sway]
11. Lower vehicle.
1. Raise vehicle on a ramp [hoist].

2. Mark anti-roll [sway] bar rubber bushes for reassembly.

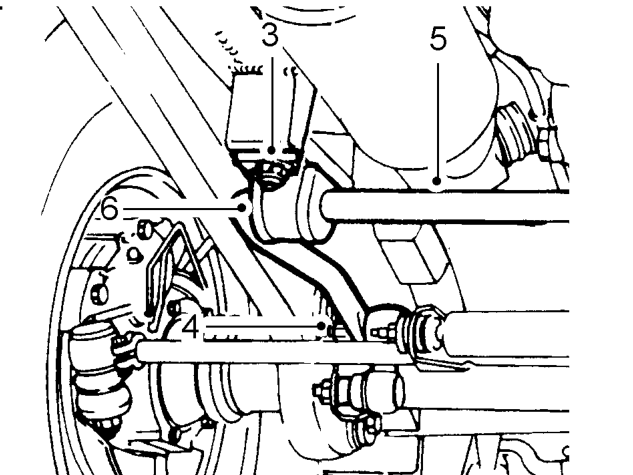

3. Remove 4 nuts and bolts securing anti-roll [sway] bar to mounting brackets.
4. Remove 2 nuts and bolts securing anti-roll [sway] bar to ball joint links.
5. Remove anti-roll [sway] bar.
6. Remove rubber bushes from anti-roll [sway] bar.
7. Fit bushes to anti-roll [sway] bar. Ensure split in bushes points towards axle on RH side, and away from axle on LH side.
8. Position anti-roll [sway] bar and loosely fit nuts and bolts to mounting brackets.

NOTE: Angled sides of bar should point downwards.

9. Using new nuts, fit anti-roll [sway] bar to ball joint links. Tighten to 68 Nm, 50 lbf ft.

bar to mounting brackets to 30 Nm, 22 lbf ft.
