Location of identification numbers

LOCATION OF IDENTIFICATION NUMBERS

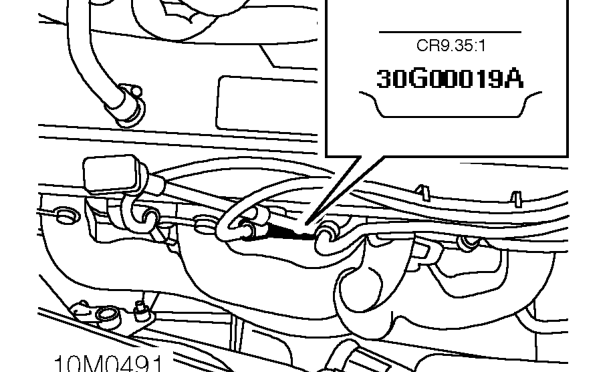

Engine serial number - V8i engine

Stamped on a cast pad on the cylinder block, between numbers 3 and 5 cylinders.

• NOTE: The appropriate engine
• compression ratio is stamped above the
• serial number.

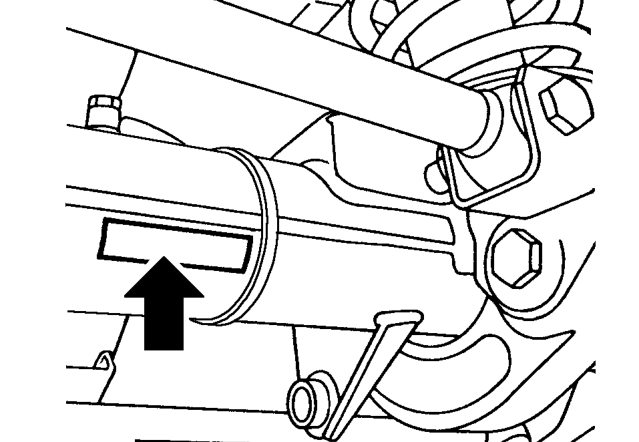

Front axle serial number

Serial number is stamped on the front of LH axle tube.

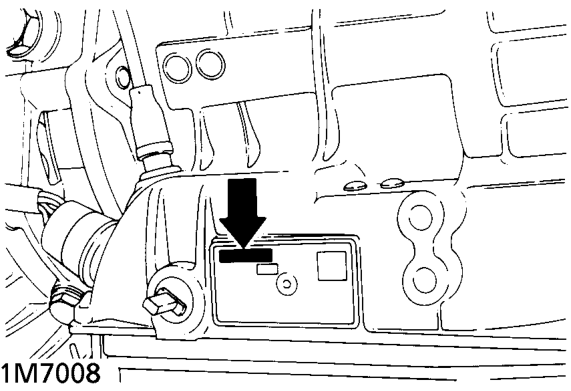

Automatic gearbox serial number

The serial number is stamped on a plate attached to the LH side of the casing.

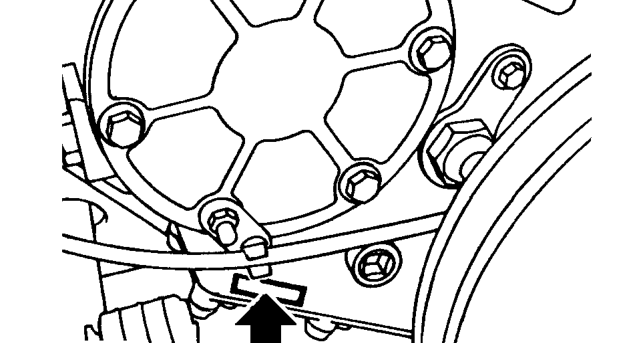

Transfer gearbox serial number

The serial number is stamped on the LH side of the gearbox casing below the mainshaft rear bearing Rear axle serial number housing adjacent to the bottom cover, see J6092 Serial number is stamped on rear of LH axle tube.
