Anti-roll [sway] bar

ANTI-ROLL [SWAY] BAR

Service repair no - 64.35.08

Remove Refit

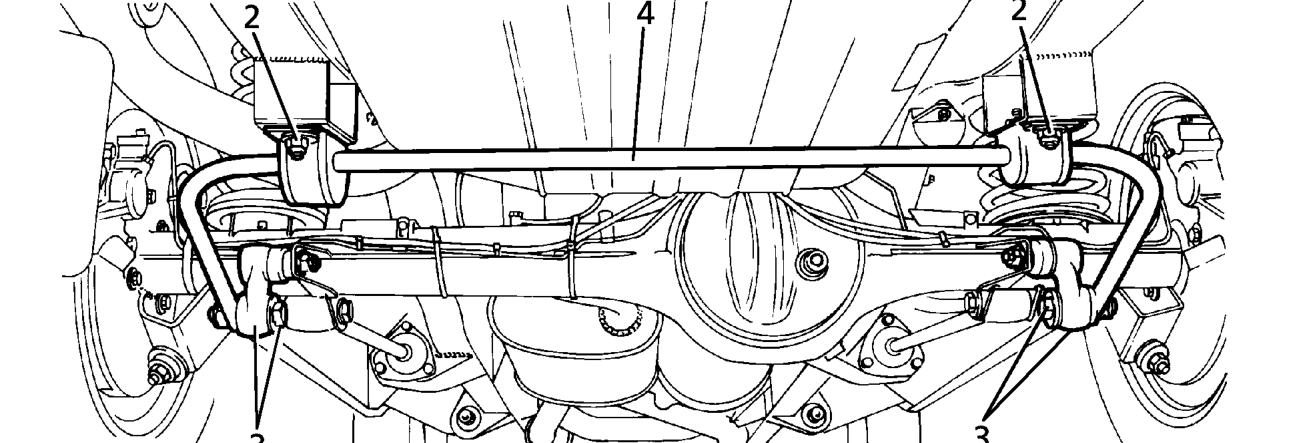

1. Note for reassembly, position of rubber bushes on anti-roll [sway] bar.
2. Remove 4 nuts, bolts and washers securing 2 bush straps to chassis mountings.
3. Remove nuts, bolts, washers and rubber bushes from the ball joint links.
4. Remove anti-roll [sway] bar.
5. Position rubber bushes on anti-roll [sway] bar. Fit joint towards axle.
6. Fit anti-roll [sway] bar with 2 straps. Ensure ball joint link arms point down as shown in J6259. Loosely fit, bolts, washers and NEW nyloc nuts.
7. Fit bolt, washers and rubber bushes. Fit anti-roll [sway] bar to ball joint links and tighten to 68Nm, .

50 lbf ft

8. Tighten nuts securing straps to 30Nm, 22 lbf ft.
