SUSPENSION LINK - LOWER Renew bush

Service repair no - 64.35.02.

Remove

  1. Site vehicle on a ramp [hoist].
  2. Alternatively, support vehicle on stands under rear axle. Refit
  3. Fit mounting rubber to lowerlink.
  4. Secure mounting rubber to chassis bracket, but
  5. Fit lower link to axle mounting and secure fixing

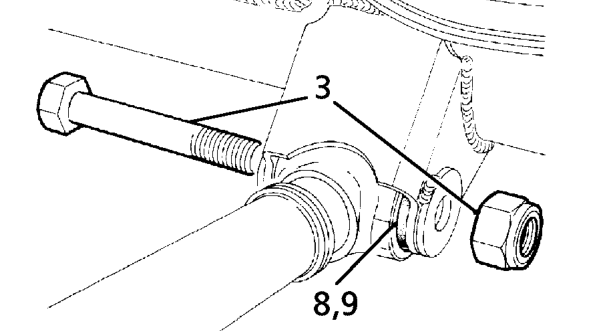

Suspension link - lower renew bush – Fit lower link to axle mounting and secure fixing
  1. Lower vehicle, allow axle to take up static laden
  2. Remove lower link rear fixings.

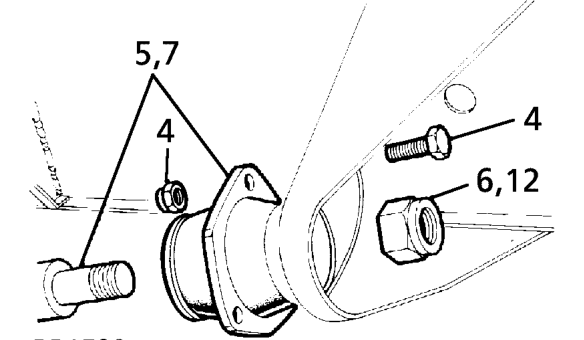

Suspension link - lower renew bush – Remove lower link rear fixings.
  1. Remove mounting bracket fixings at side member bracket.
  2. Remove lower link complete.
  3. Remove locknut.
  4. Remove mounting bracket from lower link.
  5. Press out rubber bushes.
  6. Fit bush centrally in housing.

CAUTION: Apply pressure to outer edge of bush, and not rubber inner.

do not fully tighten locknut.

to 175 Nm, 130 lbf ft.

position, and fully tighten link chassis fixing to 175 Nm, 130 lbf ft.
