Anti-roll [sway] bar ball joint links

ANTI-ROLL [SWAY] BAR BALL JOINT LINKS

Service repair no - 64.35.24.

Remove

1. Remove 2 nuts, bolts, washers and rubber bushes from ball joint links and lower anti-roll [sway] bar to clear links.
2. Remove cotter pin and loosen castellated nut a few turns.

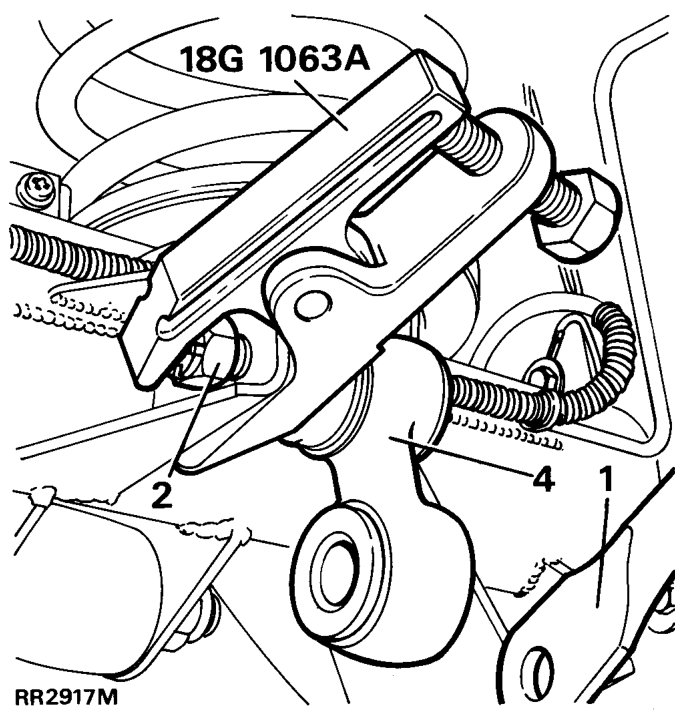

3. Release ball joint using special tool 18G 1063Aas shown.
4. Remove castellated nut and ball joint link.

Refit

5. Fit ball joint link arm and castellated nut. Point ball joint link arm down as shown. Tighten fixing to 40 Nm, 30 lbf ft and fit new cotter pin.
6. Align anti-roll bar to ball joint links.
7. Fit bolts, washers and rubber bushes using new self locking nuts and secure anti-roll [sway] bar to ball joint links. Tighten to 68Nm, 50 lbf ft

.
