SUSPENSION LINK - UPPER Renew bush

Service repair no - 64.35.44.

Remove

  1. Support rear of chassis on stands, allow axle to hang freely. Refit

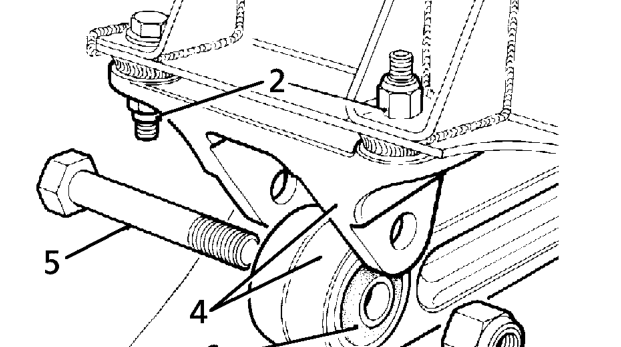

Suspension link - upper renew bush – Support rear of chassis on stands, allow axle to hang freely. Refit
  1. Fit upper link to pivot bracket.
  2. Fit frame bracket to chassis mounting.
  3. Fully tighten fixings to correct torque.

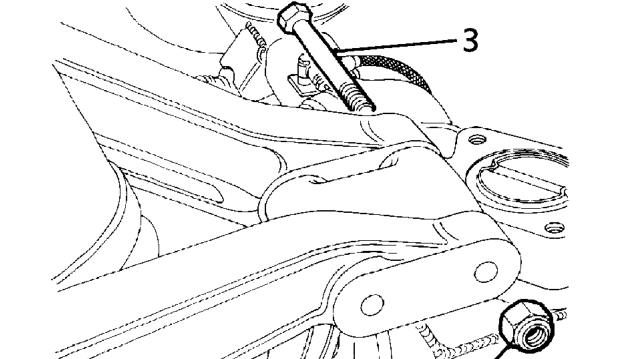

Suspension link - upper renew bush – Fully tighten fixings to correct torque.
  1. Remove fixings, upper link bracket to frame.
  2. Remove fixings, upper links to pivot bracket.
  3. Remove upper link complete with frame bracket.
  4. Remove bolt.
  5. Separate link from bracket.
  6. Press out rubber bushes.
  7. Fit bush centrally in housing.

CAUTION: Apply pressure to outer edge of bush, and not rubber inner.

NOTE: Do no fully tighten fixings until all components are in position.

  1. Secure link to frame bracket.

See Specifications, torque, Torque values.
