Reassemble Fitting valve and worm assembly

Reassemble Fitting valve and worm assembly

NOTE: When fitting replacement oil seals

lubricate with recommended fluid and ensure absolute cleanliness.

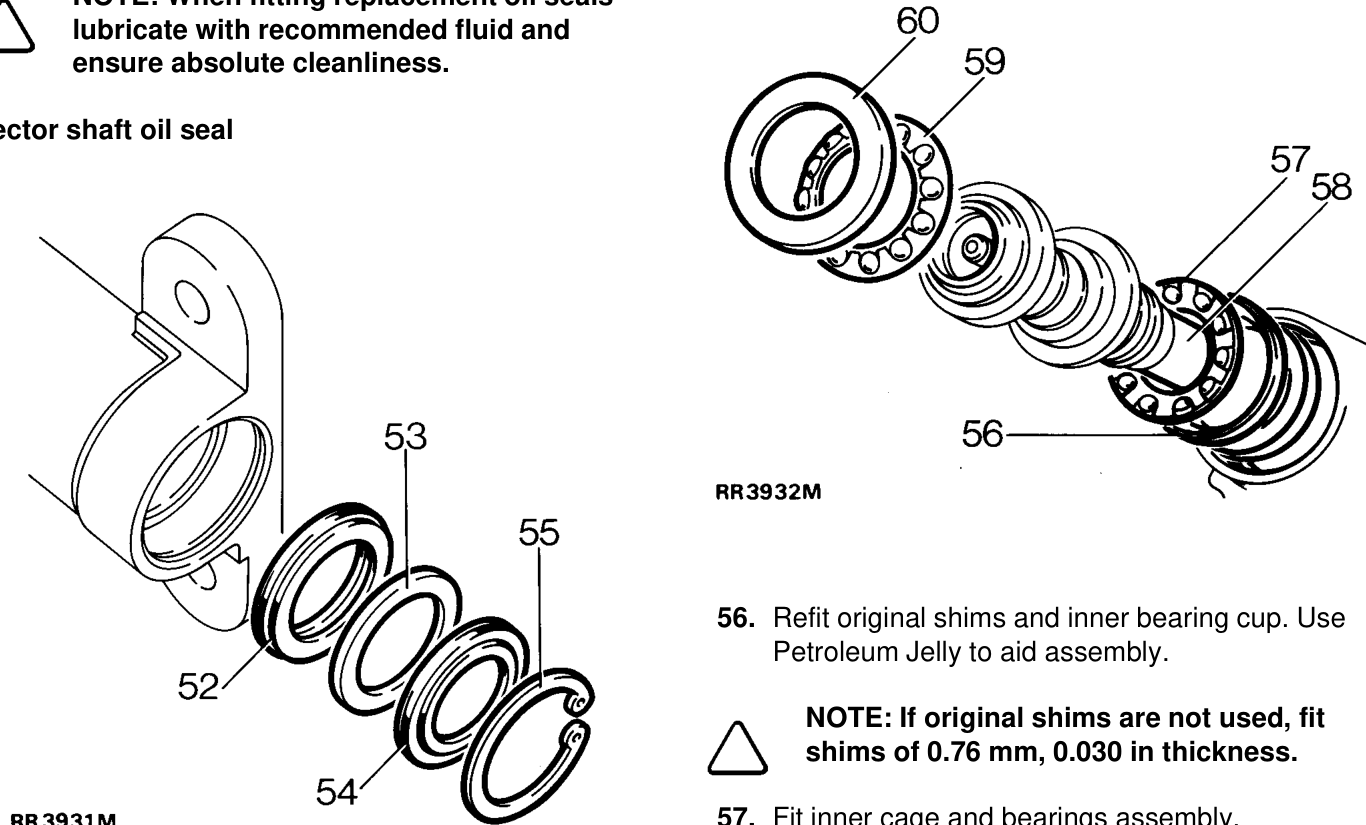

Sector shaft oil seal

56. Refit original shims and inner bearing cup. Use Petroleum Jelly to aid assembly.

NOTE: If original shims are not used, fit shims of 0.76 mm, 0.030 in thickness.

57. Fit inner cage and bearings assembly.
58. Fit valve and worm assembly.
59. Fit outer cage and bearings assembly.
60. Fit outer bearing cup.
61. Fit new worm adjuster sealing ring.
52. Fit oil seal, lip side first.
53. Fit extrusion washer.
54. Fit dust seal, lipped side last.
55. Fit circlip.
