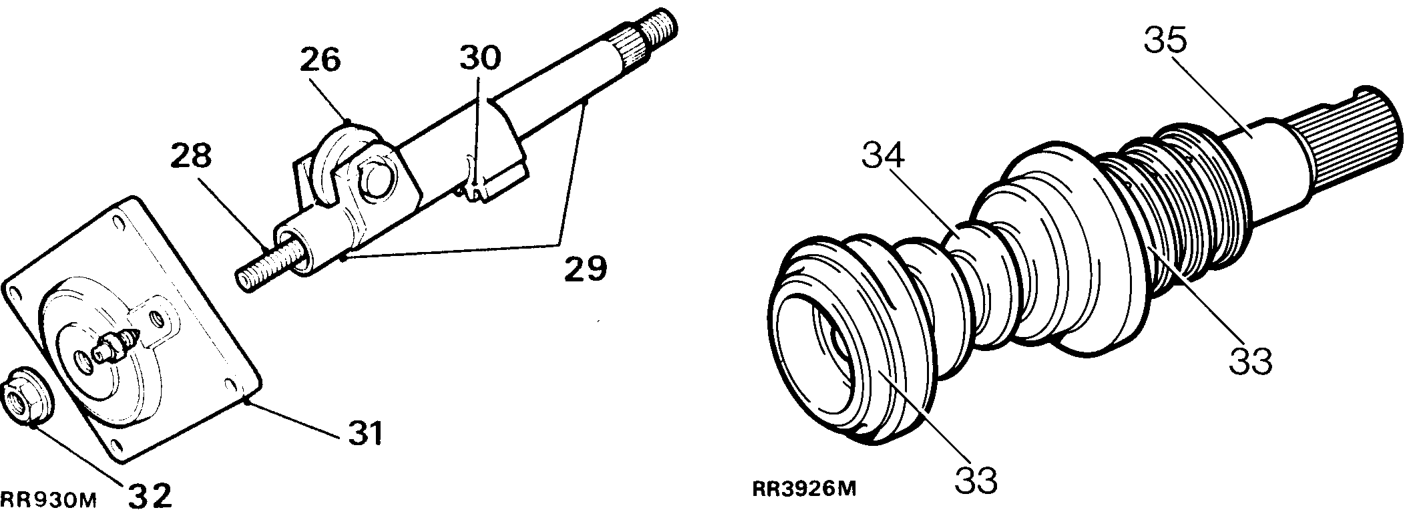

Sector shaft assembly Valve and worm assembly

Sector shaft assembly Valve and worm assembly

26. Check there is no side play on roller. 33. Examine bearing areas for wear. The areas must
27. If side play on roller exists fit a new sector shaft.
28. Check condition of adjuster screw threads. 34. Examine worm track which must be smooth and Check adjuster end float. Fit new adjuster if end float exceeds 0.15 mm, 0.006 in. 35. Check for wear on torsion bar assembly pin. No
29. Examine bearing areas on shaft for excessive wear.
30. Examine gear teeth for uneven or excessive wear.

Sector shaft cover assembly

31. Inspect cover and bearing. If worn or damaged, fit a new steering box.

Sector shaft adjuster locknut

32. The locknut is also a fluid seal. Fit new nut at overhaul.

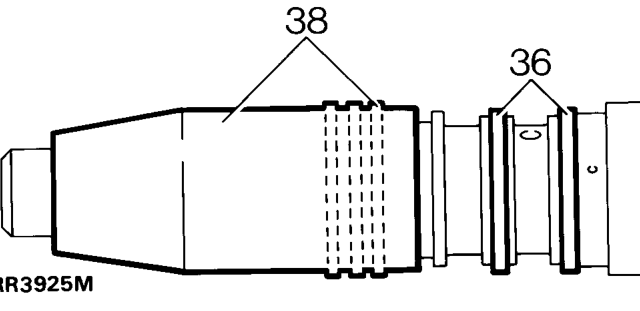

36. Examine valve rings for cuts, scratches and

be smooth and not indented.

not indented.

free movement should exist between input shaft and torsion bar or between torsion bar and worm.

NOTE: Any sign of wear makes it essential to fit new valve and worm assembly.

grooves. The valve rings should be free to rotate in grooves.
