Land Rover Defender 90 Workshop Manual (NAS)17 · Steering
17 · Steering & suspension

steering box on a bench.

Make
Land Rover
Model
Defender 90 Workshop Manual (NAS)
Section
Overhaul › steering box on a bench.
Steeringsteering box on a bench.

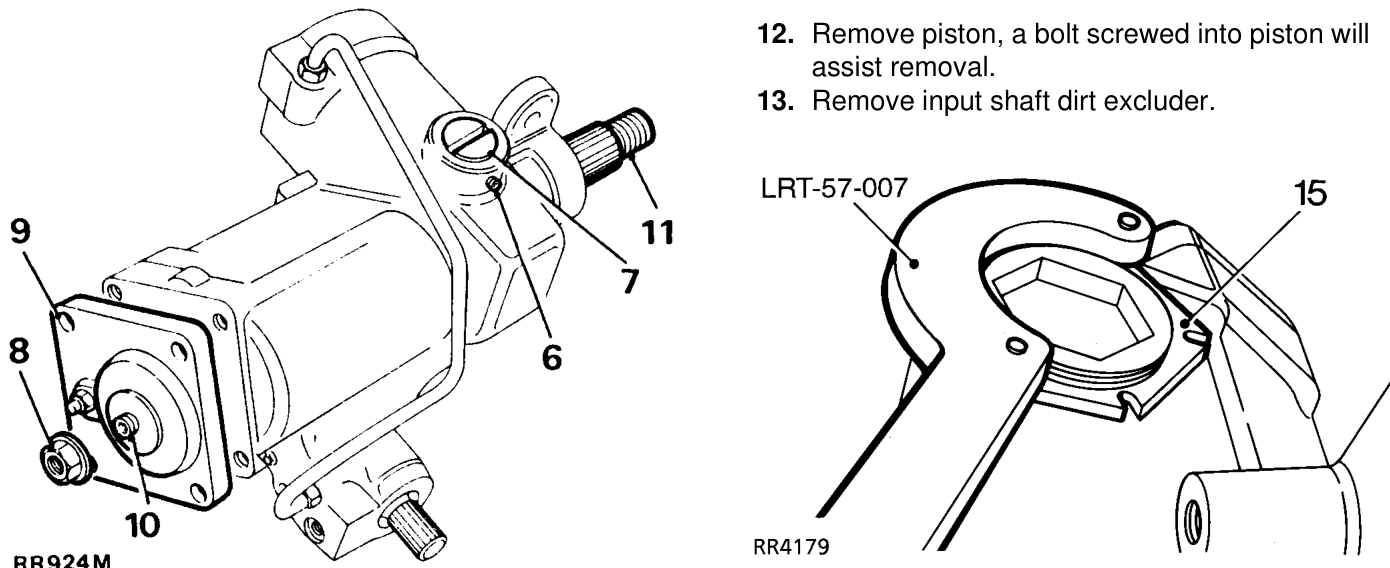

Diagram
  1. Remove piston, a bolt screwed into piston will assist removal.
  2. Remove input shaft dirt excluder.
  3. Remove worm adjuster locknut using ’C’ wrench
  4. Remove set screw retaining rack pad adjuster.
  5. Remove rack adjuster and pad.
  6. Remove worm adjuster using wrench
  7. Remove sector shaft adjuster locknut.
  8. Remove four bolts from sector shaft cover.
  9. Screw in sector shaft adjuster until cover is removed.
  • NOTE: Sealant is applied to hexagon
  • socket to ’tamperproof’ sector shaft
  • adjuster.
  1. Slide out sector shaft.

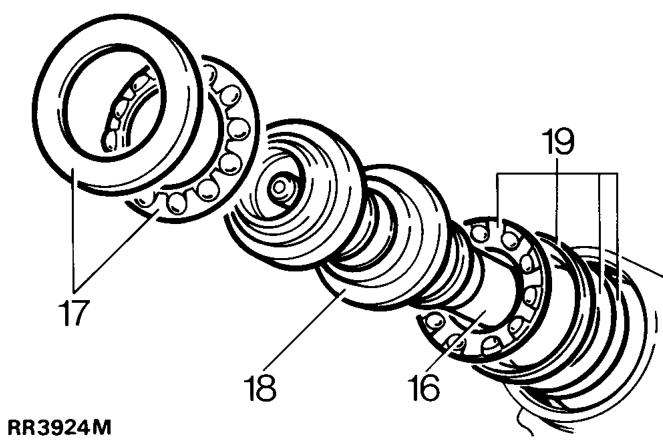

  2. Tap splined end of shaft to free bearing.
  3. Remove bearing cup and caged ball bearing
  4. Remove valve and worm assembly.
  5. Remove inner bearing cage, cup and shim

steering box on a bench.

LRT-57-007.

LRT-57-006.

Steering box on a bench. – LRT-57-006.

assembly.

washers. Retain shims for reassembly.

  • NOTE: Should difficulty be experienced,
  • warm casing and bearing assembly. Cool
  • bearing cup using a mandrel and tap
