Steering box seals INSPECTING

Steering box seals INSPECTING

Piston

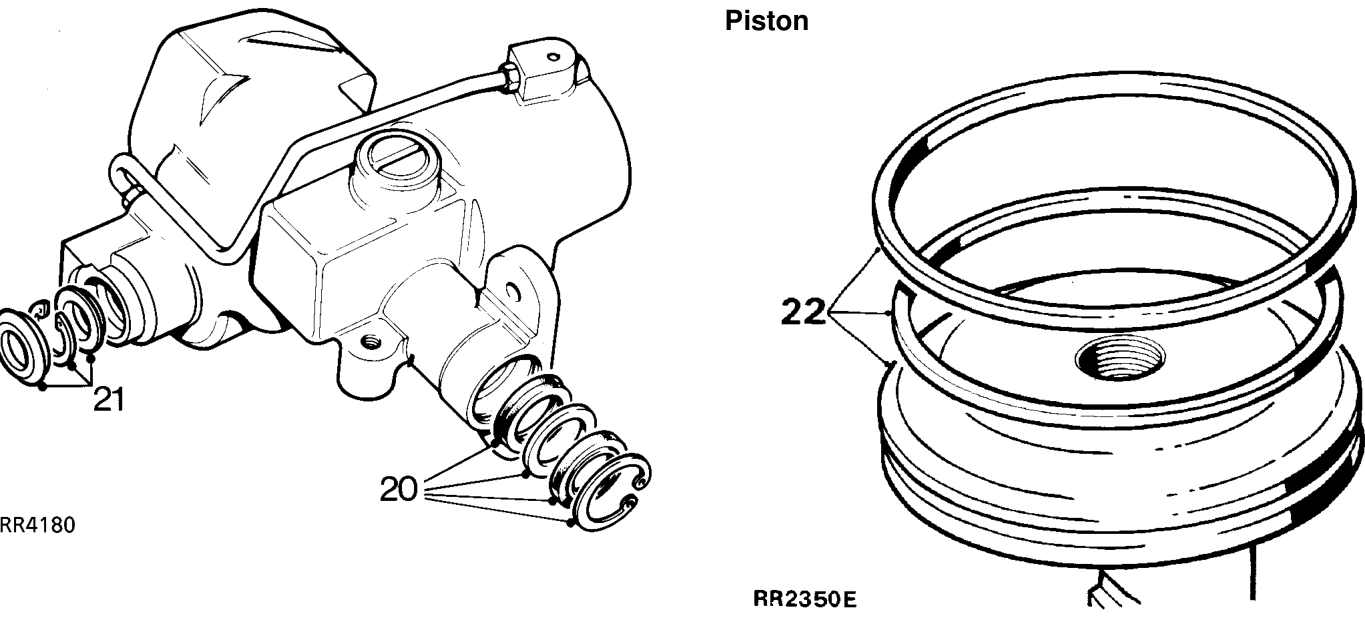

20. Remove circlip and seal from sector shaft housing bore.
22. Discard all rubber seals and provide

• CAUTION: Do not remove sector shaft
• bearings from casing. Replacement parts
• are not available. If sector shaft bearings
• are worn, fit a new steering box.

21. Remove dirt excluder, circlip and seal from input shaft housing bore. Steering box casing

• CAUTION: The use of a seal puller is
• recommended to prevent damage to
• casing, and possible oil leaks.

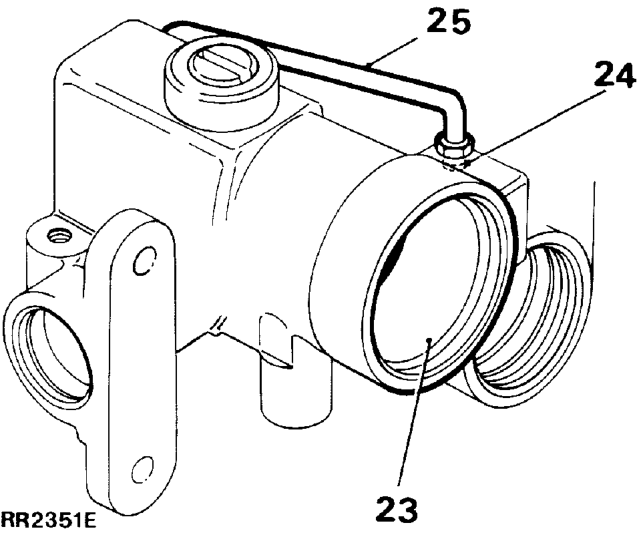

23. Examine piston bore for scoring and wear.
24. Examine feed tube.
25. Fit a new feed tube if damaged. Tighten union to

replacements.

• NOTE: A rubber seal is fitted behind
• plastic ring on rack piston. Discard seal
• and plastic ring.

.

20 Nm, 15 lbf ft
