Mass air flow (maf) sensor plenum chamber (page 2 of 2)

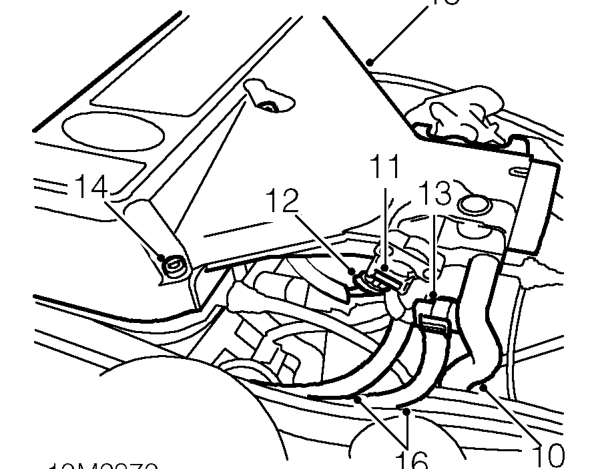

10. Disconnect purge hose from plenum chamber.
11. Disconnect breather hose from plenum chamber.
12. Depress spring clip and disconnect TP sensor multiplug.
13. Disconnect multiplug from IACV.

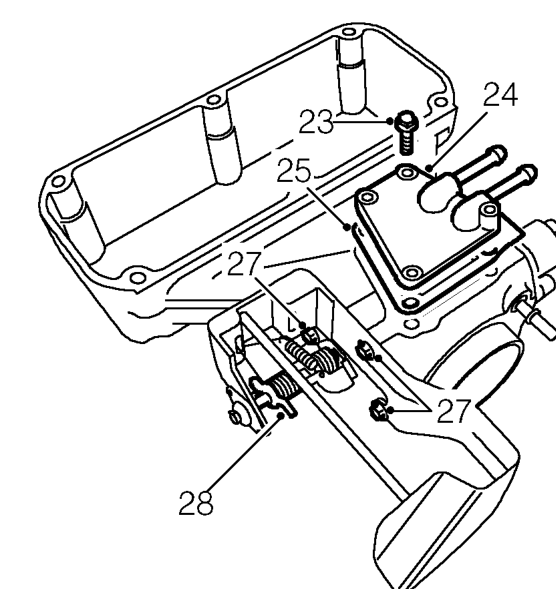

23. Remove 4 bolts securing water jacket to plenum
14. Remove 6 bolts securing plenum chamber to inlet manifold.
24. Remove water jacket from plenum chamber.
15. Release plenum chamber from inlet manifold.
25. Remove and discard gasket from water jacket.
16. Fit hose clamp to water jacket coolant hoses.
26. Move throttle linkage aside to gain access to
17. Tighten clamp.
18. Position cloth to absorb coolant spillage.
27. Remove 3 bolts securing throttle linkage to
19. Loosen clips securing coolant hoses to plenum chamber.
28. Remove throttle linkage and collect spring.
20. Release hoses from plenum chamber.
21. Remove plenum chamber.
22. Place cloth over ram housing.

Do not carry out further dismantling if component is removed for access only.

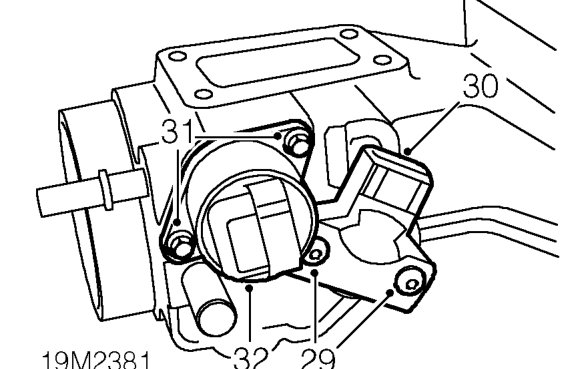

29. Remove 2 screws securing TP sensor to plenum
30. Remove TP sensor and collect clamping plate.
31. Remove 2 bolts securing IACV to plenum
32. Remove IACV and collect gasket.
33. Discard gasket.

chamber.

mounting bolts.

plenum chamber.

chamber.

chamber.
