TD5 Defender
PANEL REPAIRS
13
SEALING AND CORROSION PROTECTION
The following Illustrations show the treatment areas and Injection holes for Cavity Wax application.
All areas symmetrically opposite to those shown are also treated.

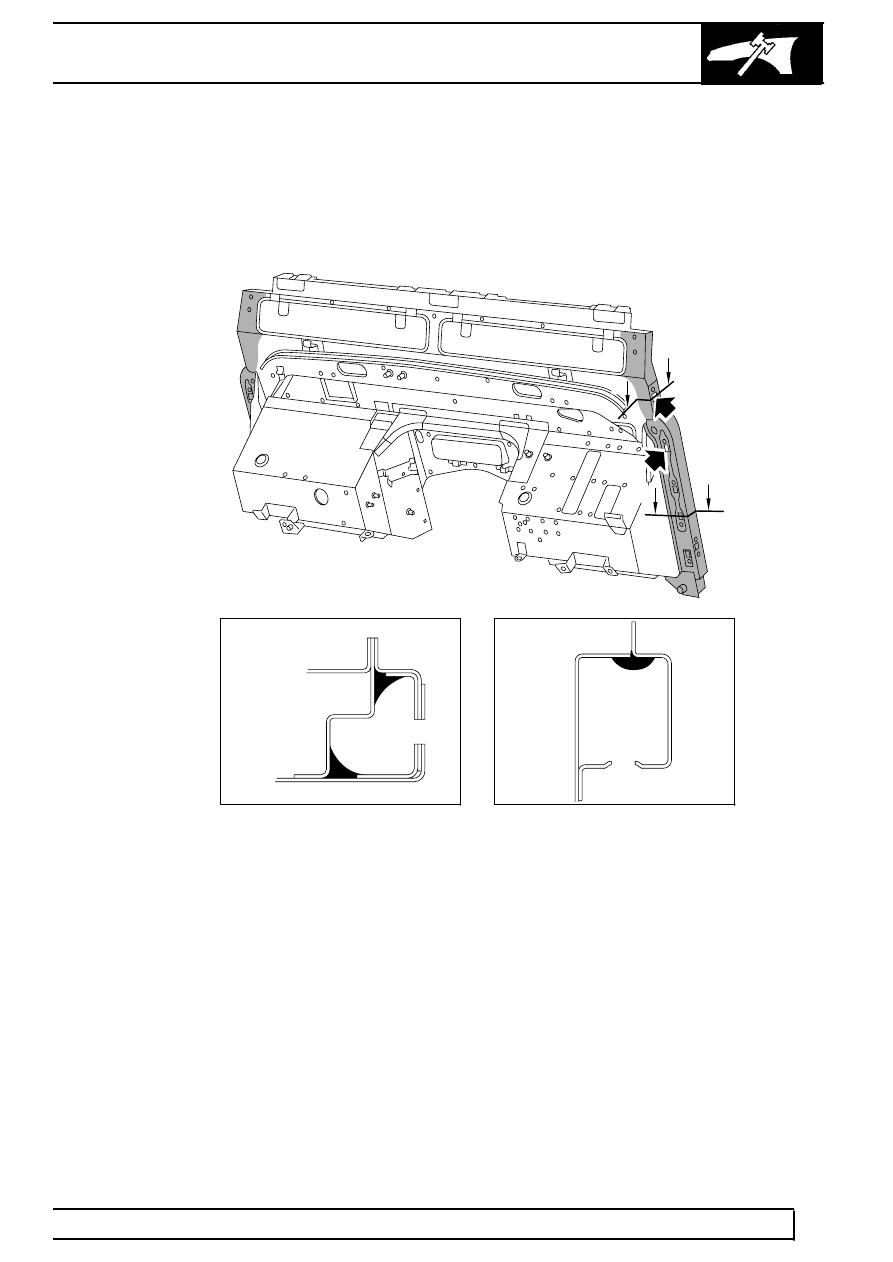

Bulkhead assembly
1
M77 2072A
B
A - A
B - B
2
A
A
B
Section A-A and B-B show application areas of cavity wax. Arrows 1 and 2 show application holes.
