PANEL REPAIRS
2
REPAIR
WING UPPER - LH
Remove
1. Disconnect both battery leads, negative lead
first.
2. Remove headlamp. See ELECTRICAL,
Repair.
3. Remove headlamp mounting panel. See this
Section.
4. Remove radiator. See COOLING SYSTEM,
Repair.
5. Recover refrigerant from A/C system. See AIR
CONDITIONING, Repair.
6. Remove receiver drier. See AIR
CONDITIONING, Repair.
7. Remove relevant A/C pipes.
8. Remove relevant heater intake pipes.
9. Remove screen washer bottle.
10. Remove wheel arch liner. See CHASSIS AND
BODY, Repair.
11. Remove bolts and release welds securing panel,
remove panel.
Refit
12. Prepare and clean panel joint faces.
13. Reverse removal procedure.
14. Align headlamps. See ELECTRICAL,
Adjustment.
WING UPPER - RH
Remove
1. Disconnect both battery leads, negative lead
first.
2. Remove headlamp. See ELECTRICAL,
Repair.
3. Remove headlamp mounting panel. See this
Section.
4. Remove radiator. See COOLING SYSTEM,
Repair.
5. Recover refrigerant from A/C system. See AIR
CONDITIONING, Repair.
6. Remove relevant A/C pipes.
7. Position PAS reservoir aside.
8. Remove wheel arch liner. See CHASSIS AND
BODY, Repair.
9. Remove aerial.
10. Remove vacuum solenoid valve.
11. Release clips securing coolant reservoir.
12. Remove bolts and release welds securing panel,
remove panel.
Refit
13. Prepare and clean panel joint faces.

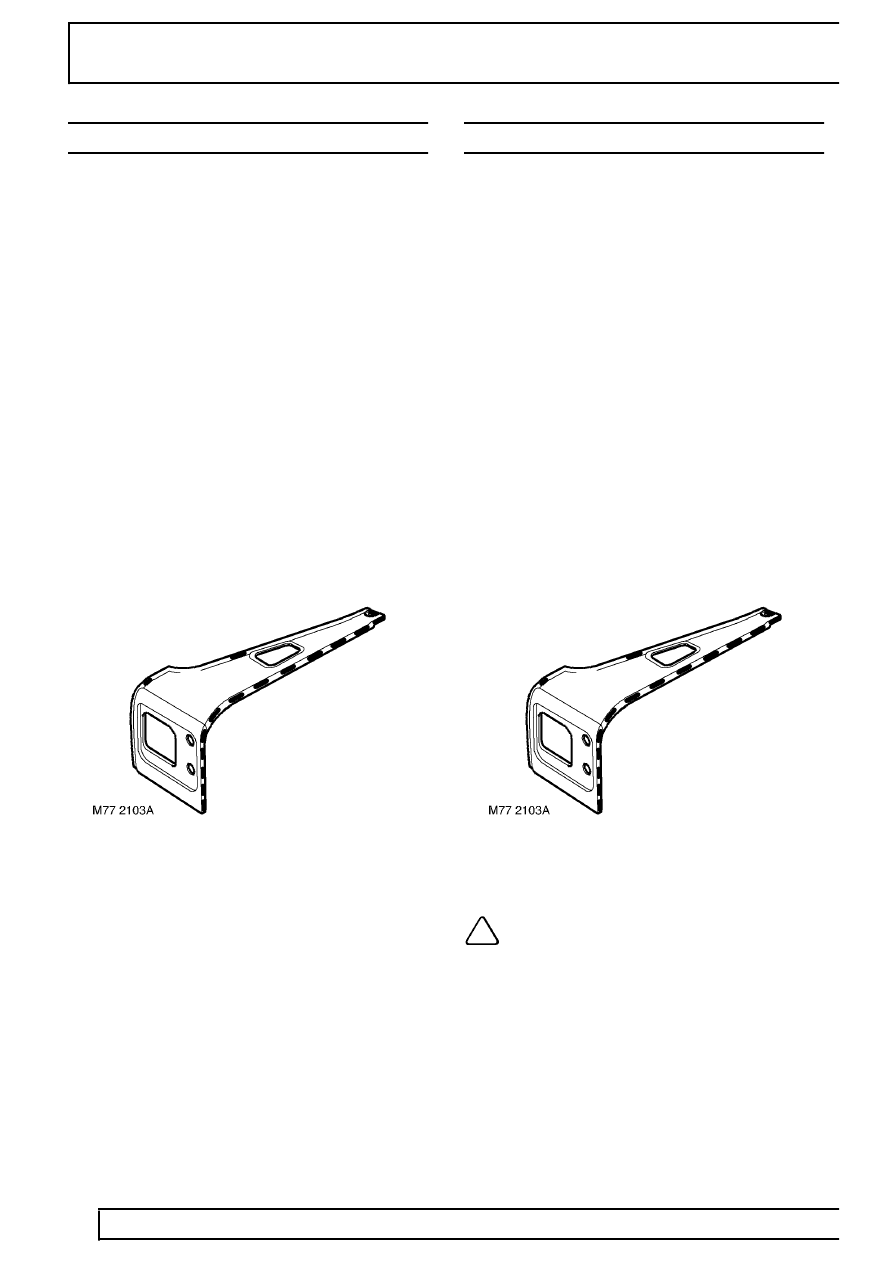

NOTE: LH panel shown
14. Reverse removal procedure.
15. Align headlamps. See ELECTRICAL,
Adjustment.
