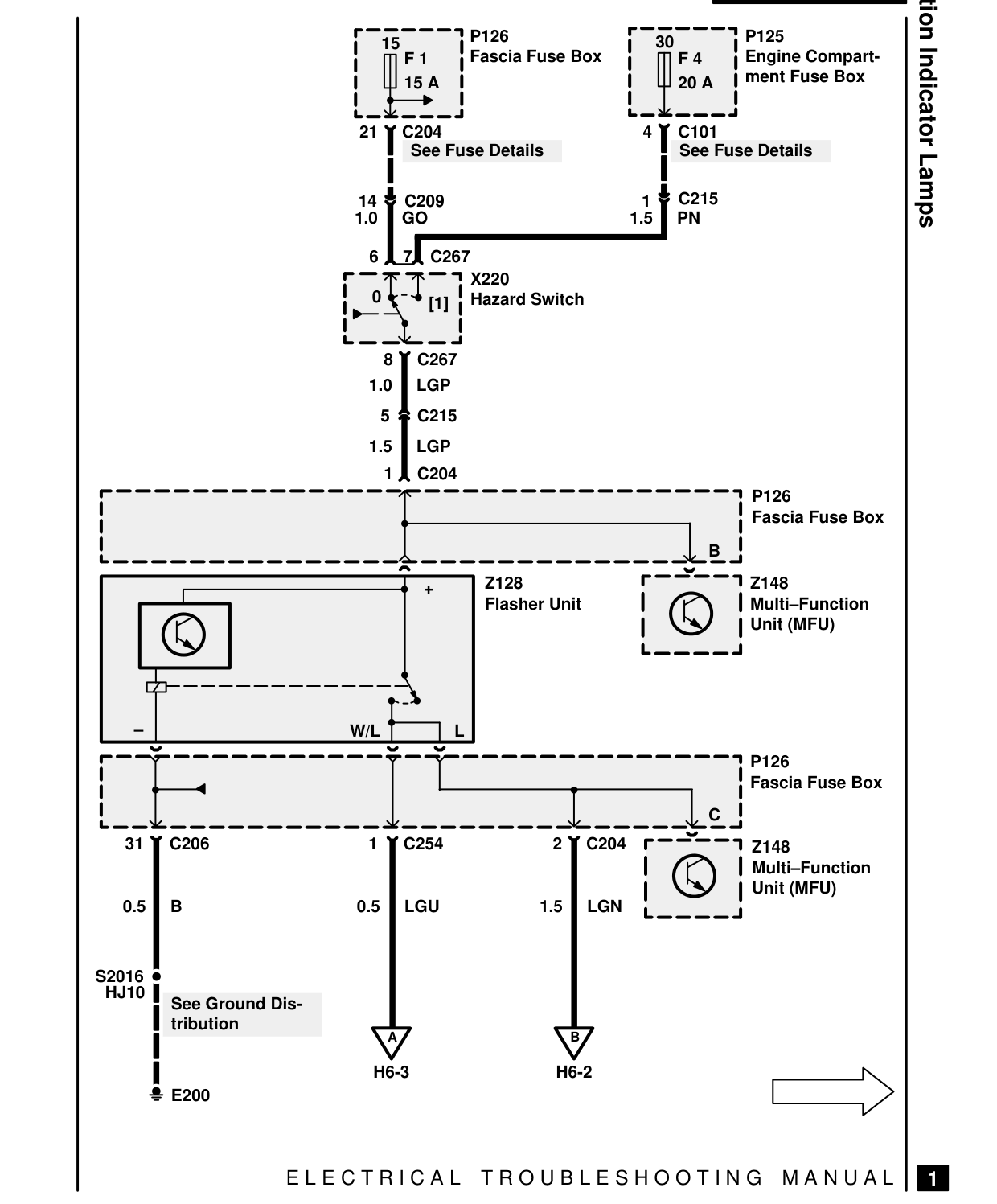

Direction indicator lamps – circuit diagram

DIRECTION INDICATOR LAMPS – CIRCUIT DIAGRAM

P126 15 Fascia Fuse Box F 1 15 A

21 C204 See Fuse Details

14 C209 1.0 GO

6 7 C267 X220 0 Hazard Switch [1]

8 C267 1.0 LGP 5 C215 1.5 LGP 1 C204

+

- L W/L

31 C206 1 C254

0.5 B 0.5 LGU

S2016 HJ10 See Ground Dis- tribution A

H6-3 E200

E L E C T R I C A L

Direction Indicator Lamps P125 30 Engine Compart- F 4 ment Fuse Box 20 A

4 C101 See Fuse Details

C215 1 1.5 PN

P126 Fascia Fuse Box

B Z128 Z148 Flasher Unit Multi-Function Unit (MFU)

P126 Fascia Fuse Box C 2 C204 Z148 Multi-Function Unit (MFU) 1.5 LGN

B

H6-2
