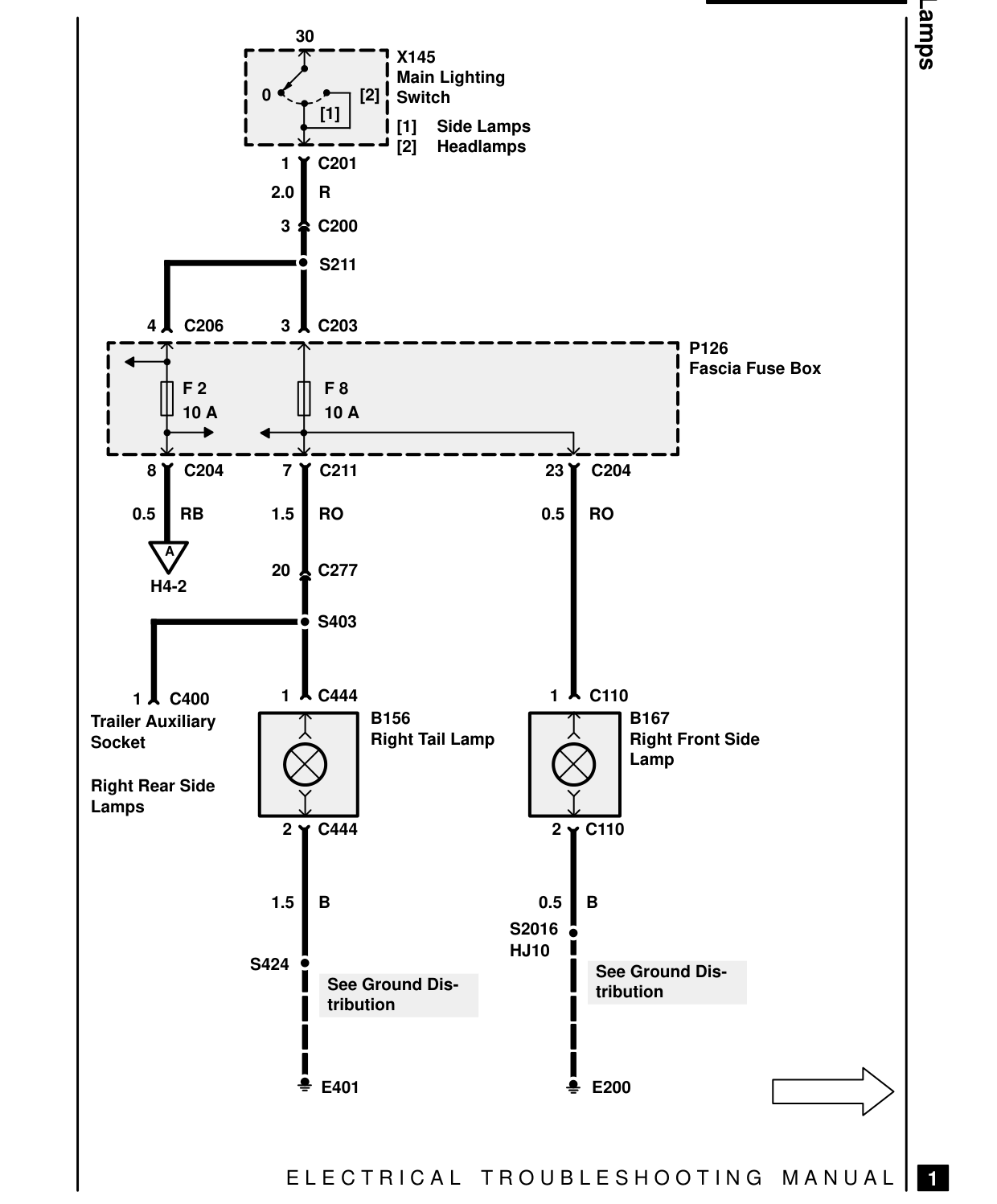

Side lamps – circuit diagram

SIDE LAMPS – CIRCUIT DIAGRAM

30 X145 Main Lighting 0 [2] Switch [1] [1] Side Lamps [2] Headlamps 1 C201 2.0 R

3 C200

S211

4 C206 3 C203

F 2 F 8 10 A 10 A

8 C204 7 C211

1.5 RO 0.5 RB

A 20 C277 H4-2

S403

1 C444 1 C400 B156 Trailer Auxiliary Right Tail Lamp Socket

Right Rear Side Lamps 2 C444

1.5 B

S424 See Ground Dis- tribution

E401

E L E C T R I C A L

Side Lamps

P126 Fascia Fuse Box

23 C204

0.5 RO

1 C110 B167 Right Front Side Lamp

2 C110

0.5 B S2016 HJ10 See Ground Dis- tribution

E200
