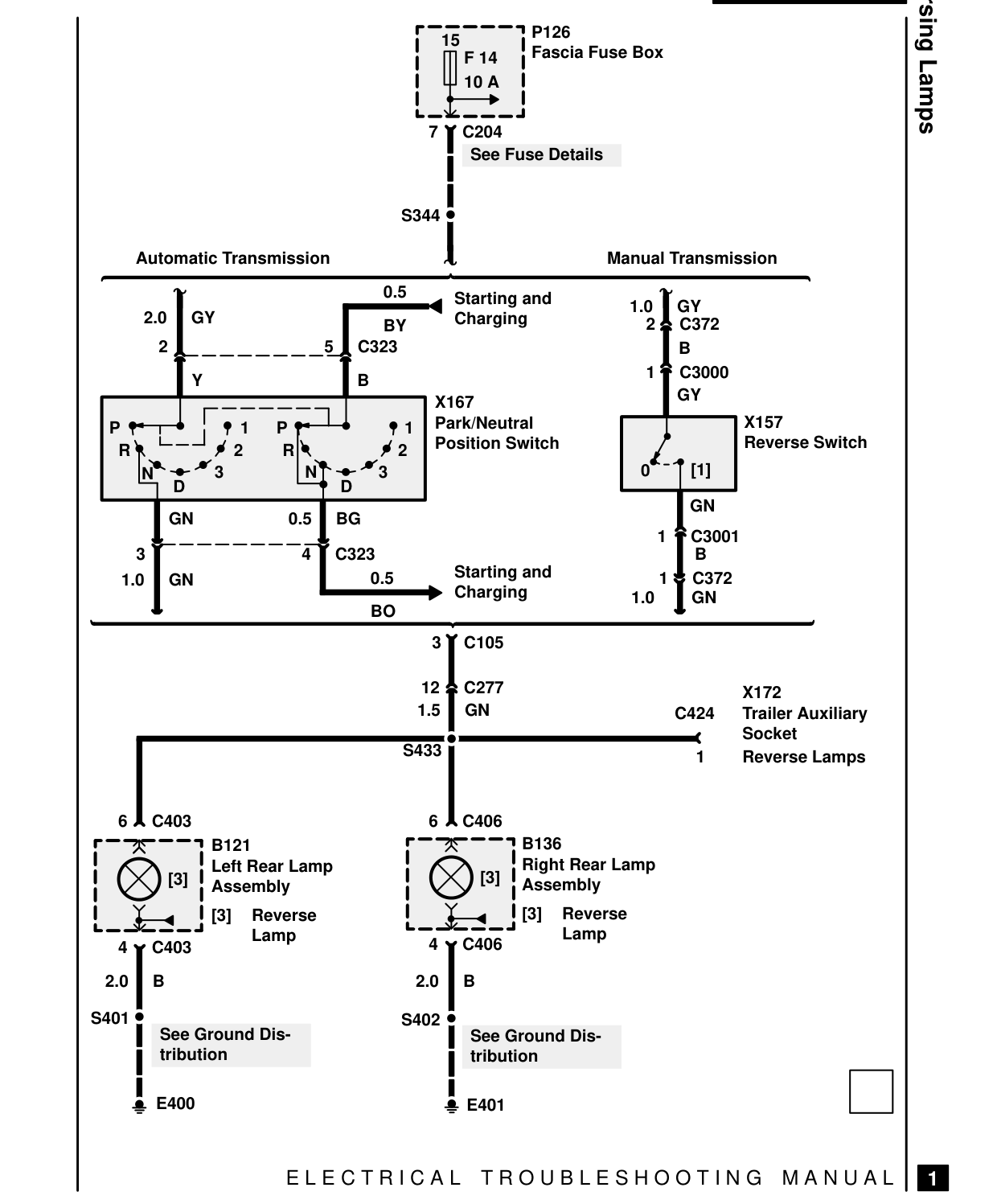

Reversing lamps – circuit diagram

REVERSING LAMPS – CIRCUIT DIAGRAM

15 F 14 10 A

7 C204 See Fuse Details

S344

Automatic Transmission

0.5 Starting and 2.0 GY Charging BY 2 5 C323

Y B X167 Park/Neutral P 1 P 1 Position Switch R 2 R 2 3 N 3 N D D GN 0.5 BG

3 4 C323 Starting and 0.5 1.0 GN Charging BO 3 C105

12 C277 1.5 GN

S433

6 C403 6 C406 B121 Left Rear Lamp [3] Assembly [3] Reverse Lamp 4 C406 4 C403

2.0 B 2.0 B

S401 S402 See Ground Dis- See Ground Dis- tribution tribution

E400 E401

E L E C T R I C A L

Reversing Lamps P126 Fascia Fuse Box

Manual Transmission

1.0 GY 2 C372 B 1 C3000 GY X157 Reverse Switch [1] 0

GN 1 C3001 B 1 C372 1.0 GN

X172 Trailer Auxiliary C424 Socket Reverse Lamps 1

B136 Right Rear Lamp [3] Assembly [3] Reverse Lamp

T R O U B L E S H O O T I N G M A N U A L

1
