Horns – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Horns – circuit diagram

HornsHorns – circuit diagram

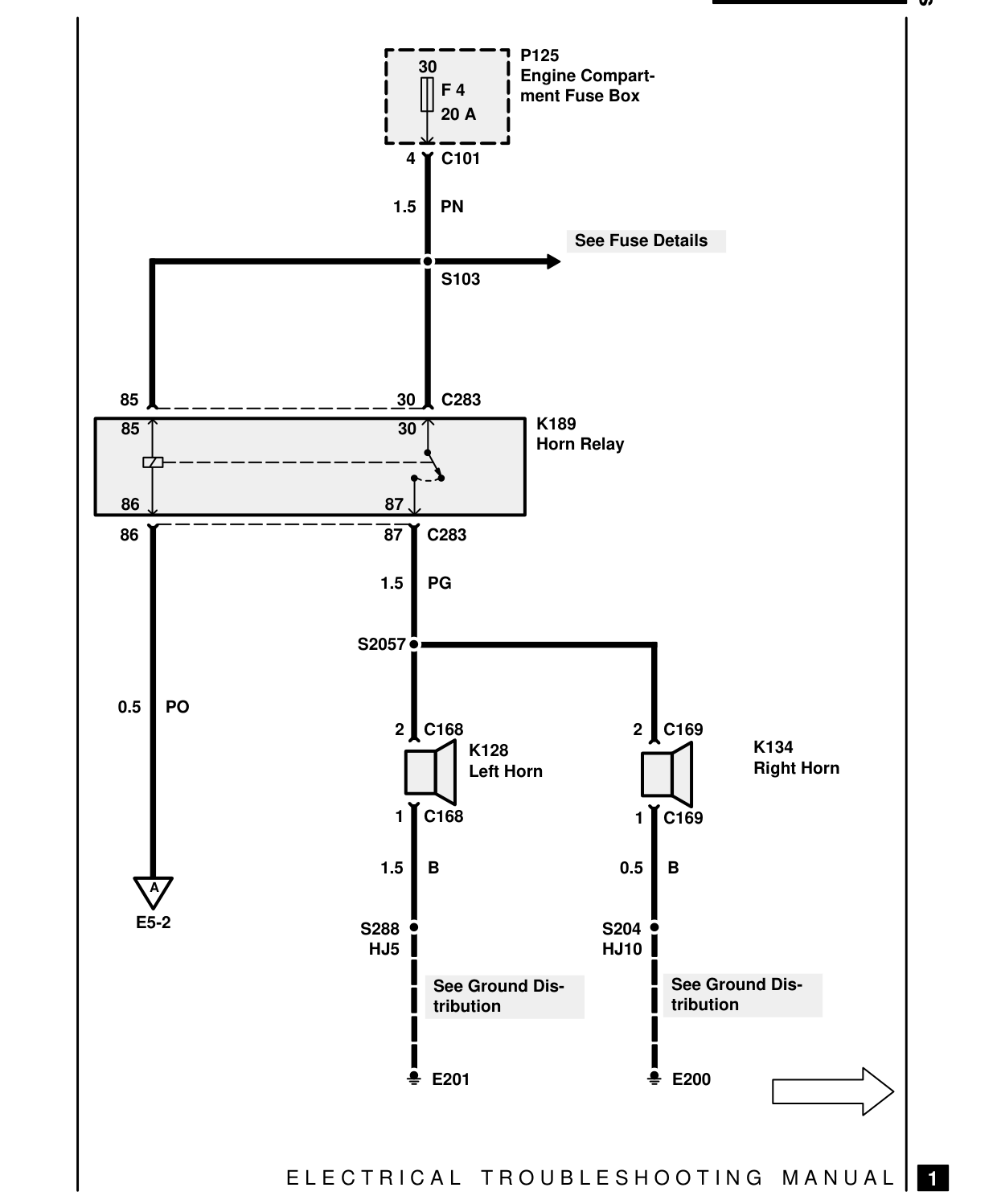

HORNS – CIRCUIT DIAGRAM

30 F 4 20 A

C101 4

1.5 PN

S103

85 30 C283 85 30

86 87 86 87 C283

1.5 PG

S2057

0.5 PO 2 C168 K128 Left Horn

1 C168

1.5 B A

E5-2 S288 HJ5

See Ground Dis- tribution

E201

E L E C T R I C A L

Horns

P125 Engine Compart- ment Fuse Box

See Fuse Details

K189 Horn Relay

2 C169 K134 Right Horn

1 C169

0.5 B

S204 HJ10

See Ground Dis- tribution

E200

T R O U B L E S H O O T I N G M A N U A L

1

12 Electrical
