Horns – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Horns – circuit diagram

HornsHorns – circuit diagram

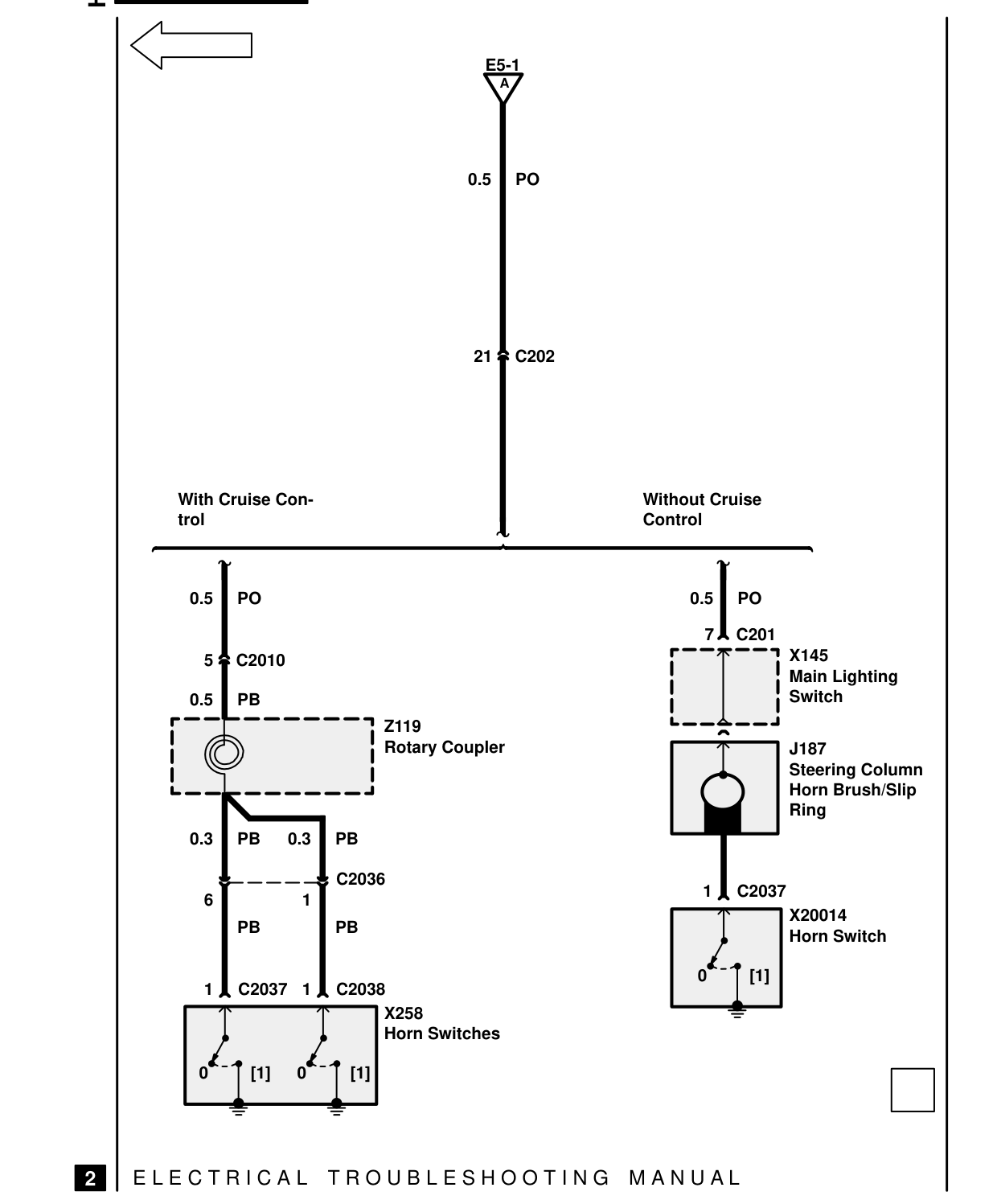

HORNS – CIRCUIT DIAGRAM

Horns

With Cruise Con- trol

0.5 PO

5 C2010

0.5 PB Z119 Rotary Coupler

0.3 PB 0.3 PB

C2036 6 1 PB PB

1 C2037 1 C2038 X258 Horn Switches

0 [1] 0 [1]

E L E C T R I C A L T R O U B L E S H O O T I N G

2

E5-1 A

0.5 PO

21 C202

Without Cruise Control

0.5 PO

7 C201 X145 Main Lighting Switch

J187 Steering Column Horn Brush/Slip Ring

1 C2037 X20014 Horn Switch

0 [1]

M A N U A L

12 Electrical
