Rear fog guard lamps – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Rear fog guard lamps – circuit diagram

Rear fog guard lampsRear fog guard lamps – circuit diagram

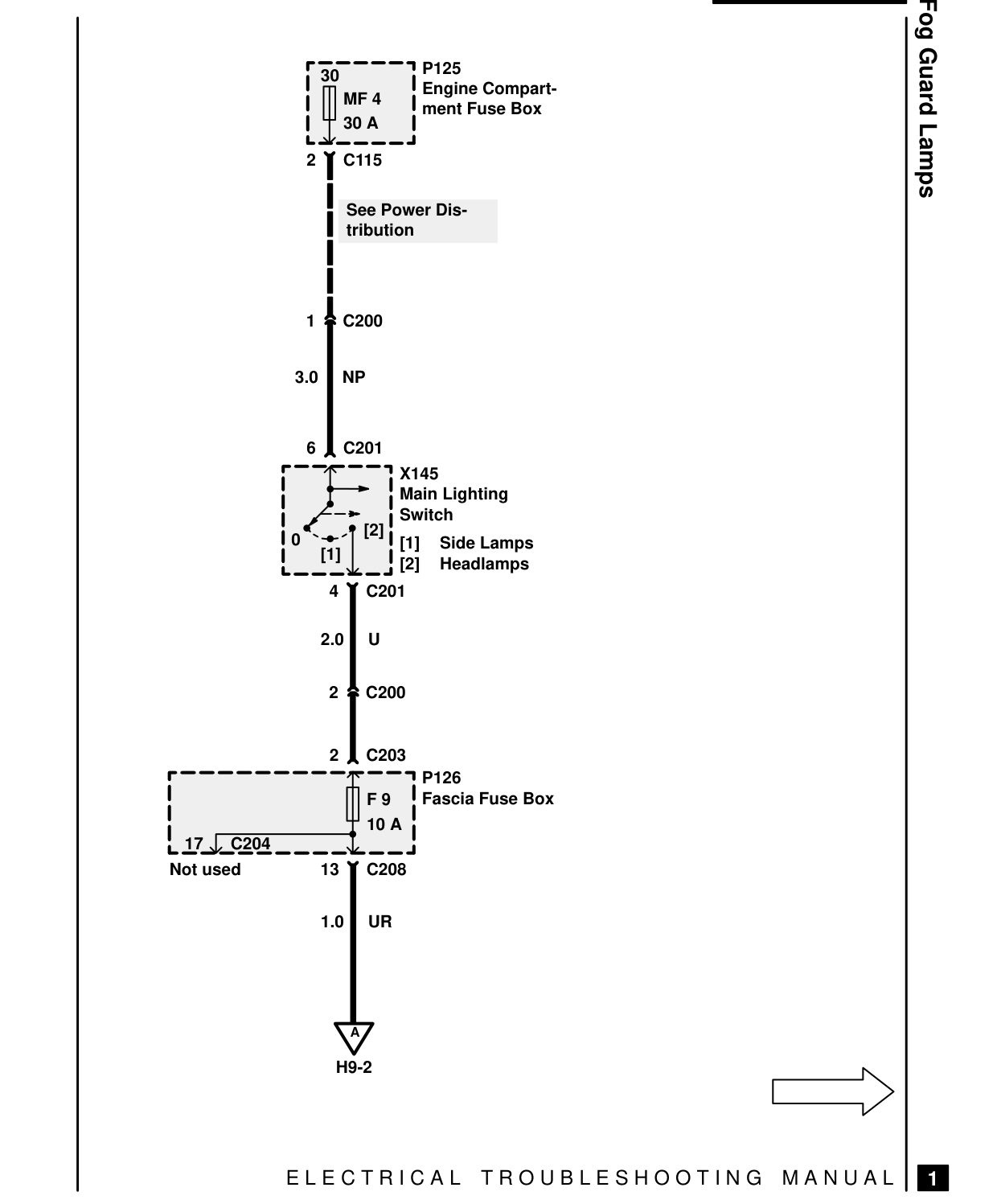

REAR FOG GUARD LAMPS – CIRCUIT DIAGRAM

P125 30 Engine Compart- MF 4 ment Fuse Box 30 A

2 C115

See Power Dis- tribution

1 C200

3.0 NP

6 C201 X145 Main Lighting Switch [2] 0 [1] Side Lamps [1] [2] Headlamps 4 C201

2.0 U

2 C200

2 C203 P126 Fascia Fuse Box F 9 10 A 17 C204 13 C208 Not used

1.0 UR

A

H9-2
