300Tdi glow plug control – circuit diagram

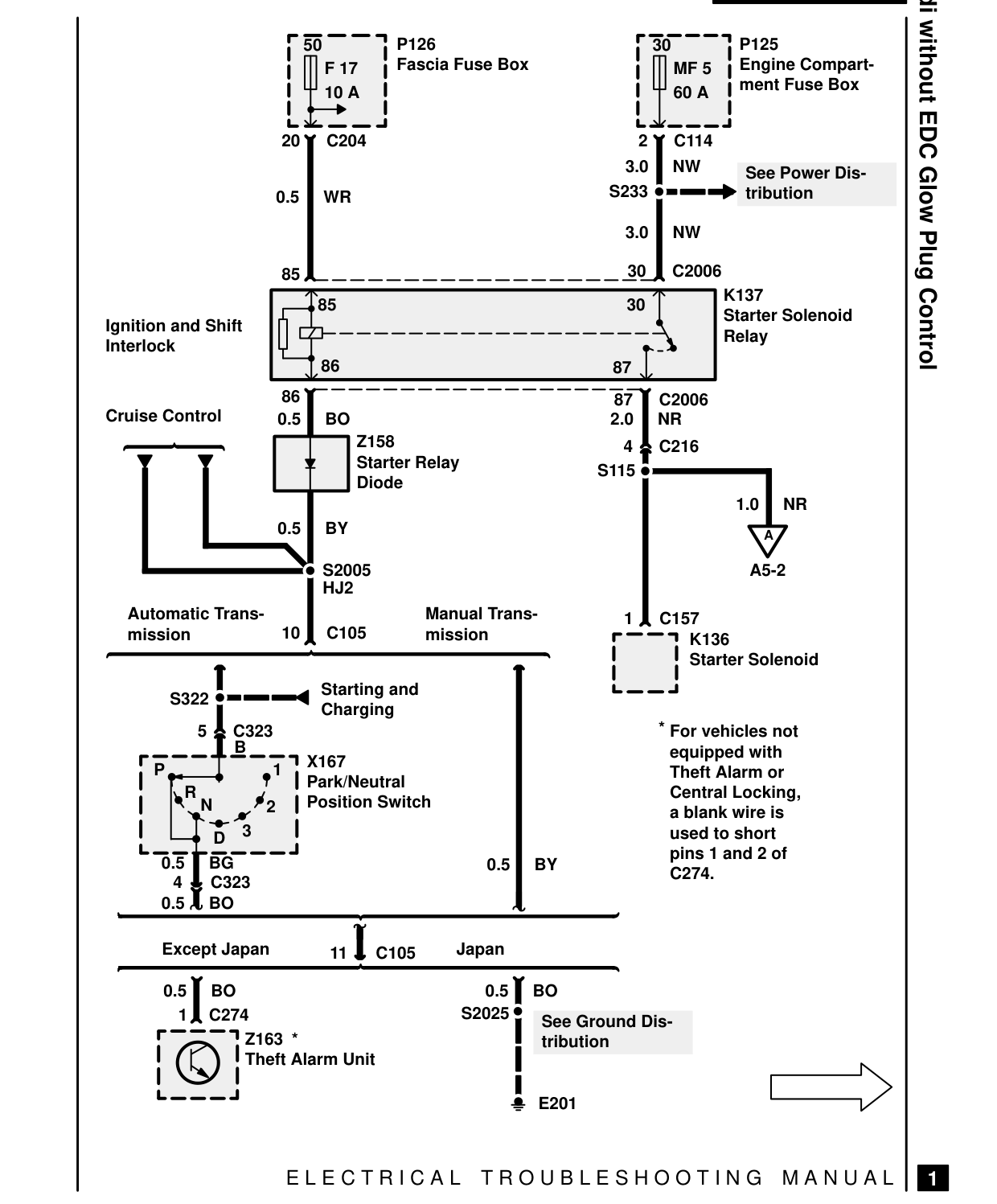

300TDI GLOW PLUG CONTROL – CIRCUIT DIAGRAM

P126 50 Fascia Fuse Box F 17 10 A

20 C204

0.5 WR

85 85 Ignition and Shift Interlock 86 86 Cruise Control 0.5 BO Z158 Starter Relay Diode

0.5 BY

S2005 HJ2 Automatic Trans- Manual Trans- 10 C105 mission mission

Starting and S322 Charging 5 C323 B X167 P 1 Park/Neutral R Position Switch N 2 3 D 0.5 BG C323 4 0.5 BO

Except Japan Japan 11 C105

0.5 BO S2025 C274 1 * Z163 Theft Alarm Unit

E L E C T R I C A L

300Tdi without EDC Glow Plug Control P125 30 Engine Compart- MF 5 ment Fuse Box 60 A

2 C114 3.0 NW See Power Dis- S233 tribution

3.0 NW

30 C2006 K137 30 Starter Solenoid Relay 87 87 C2006 2.0 NR 4 C216 S115

1.0 NR

A

A5-2

1 C157 K136 Starter Solenoid

* For vehicles not equipped with Theft Alarm or Central Locking, a blank wire is used to short pins 1 and 2 of 0.5 BY C274.

0.5 BO See Ground Dis- tribution

E201

T R O U B L E S H O O T I N G M A N U A L
