300Tdi – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › 300Tdi – circuit diagram

300Tdi300Tdi – circuit diagram

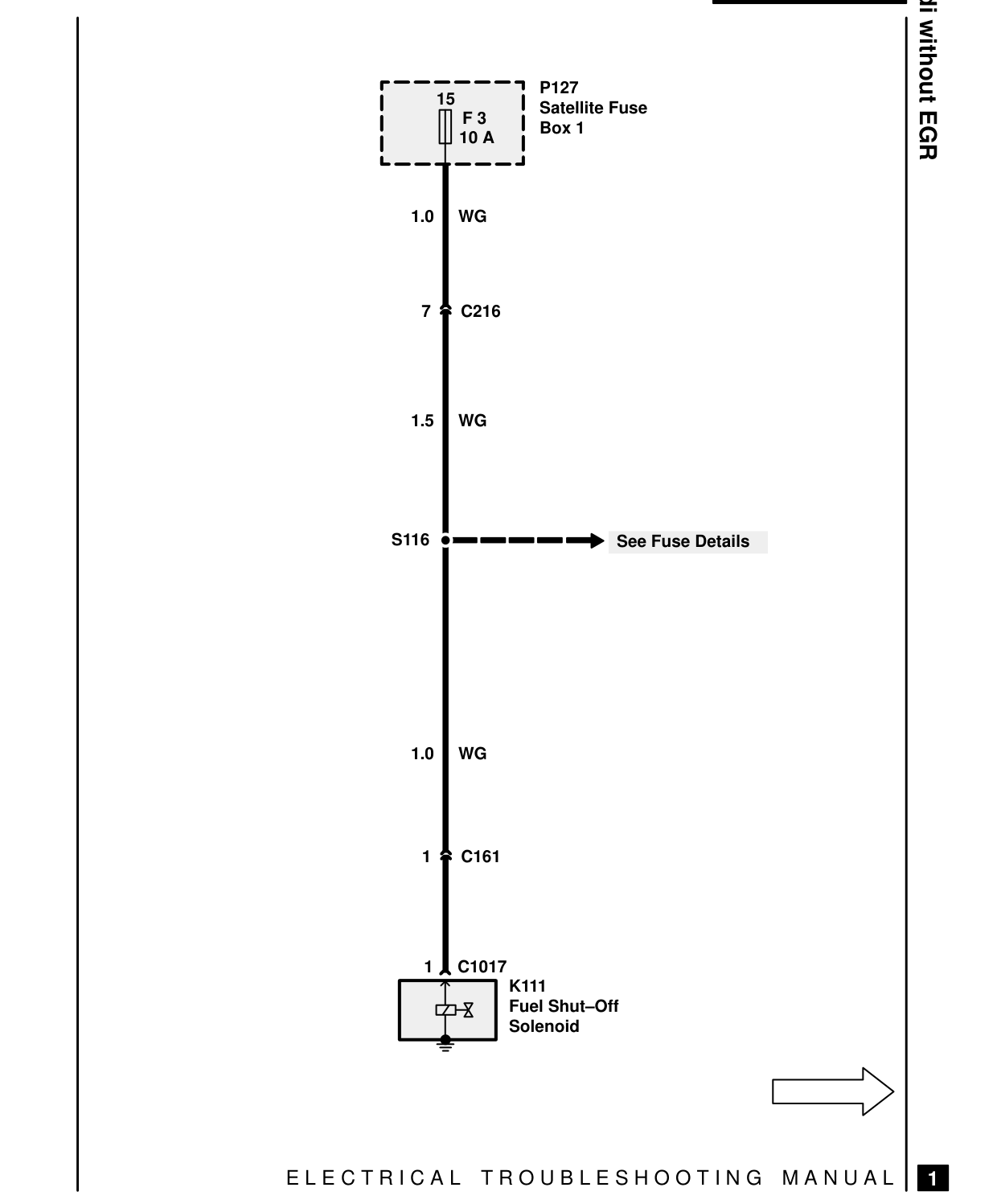

300TDI – CIRCUIT DIAGRAM

15 F 3 10 A

1.0 WG

7 C216

1.5 WG

S116

1.0 WG

1 C161

1 C1017

E L E C T R I C A L

300Tdi without EGR P127 Satellite Fuse Box 1

See Fuse Details

K111 Fuel Shut-Off Solenoid

T R O U B L E S H O O T I N G M A N U A L

1

04 General
