300Tdi – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › 300Tdi – circuit diagram

300Tdi300Tdi – circuit diagram

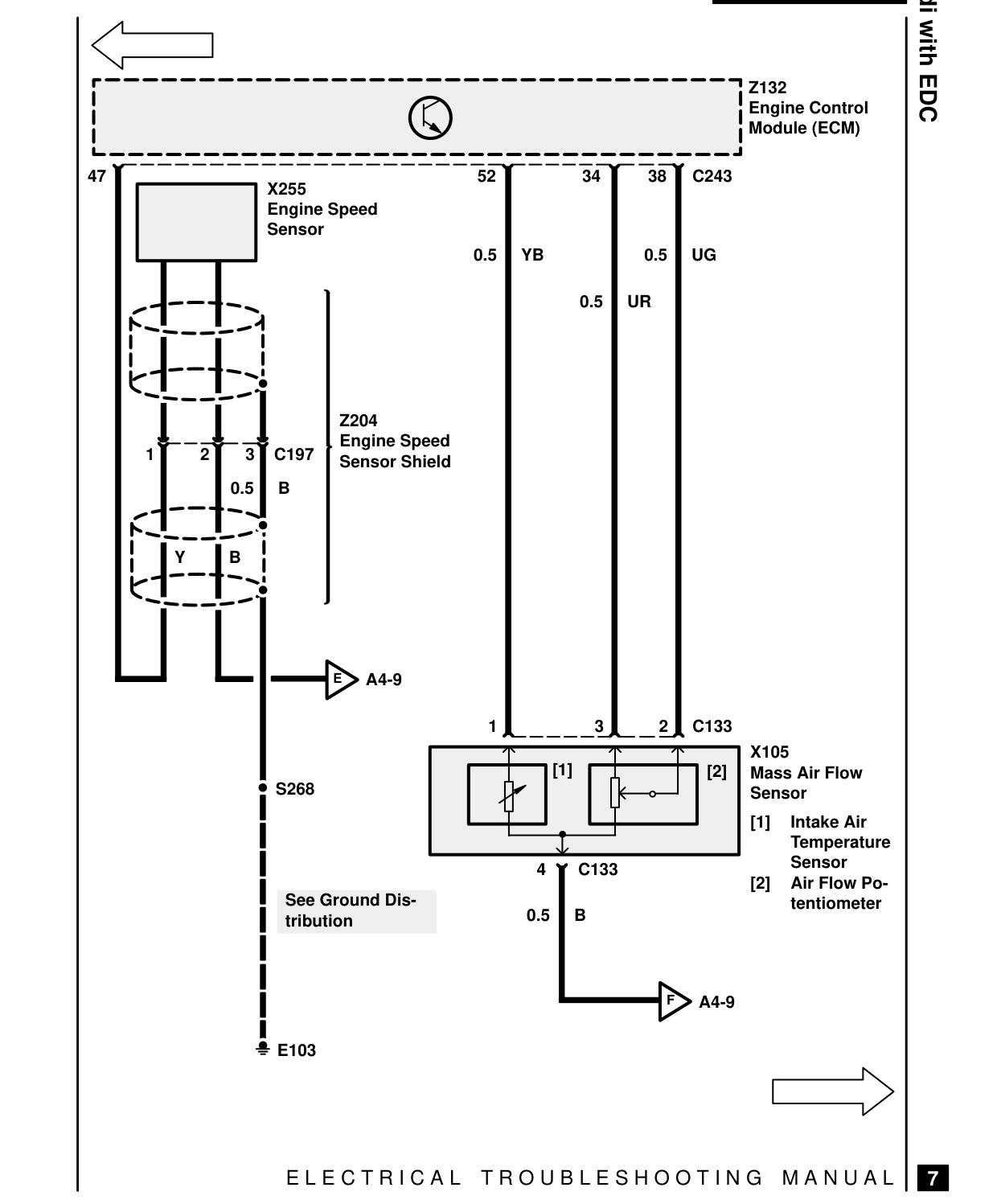

300TDI – CIRCUIT DIAGRAM

47 X255 Engine Speed Sensor

Z204 Engine Speed 2 3 C197 1 Sensor Shield 0.5 B

Y B

A4-9 E

S268

See Ground Dis- tribution

E103

E L E C T R I C A L

300Tdi with EDC Z132 Engine Control Module (ECM)

C243 52 34 38

0.5 UG 0.5 YB

0.5 UR

1 3 C133 2 X105 [1] [2] Mass Air Flow Sensor [1] Intake Air Temperature Sensor 4 C133 [2] Air Flow Po- tentiometer 0.5 B

A4-9 F

T R O U B L E S H O O T I N G M A N U A L
