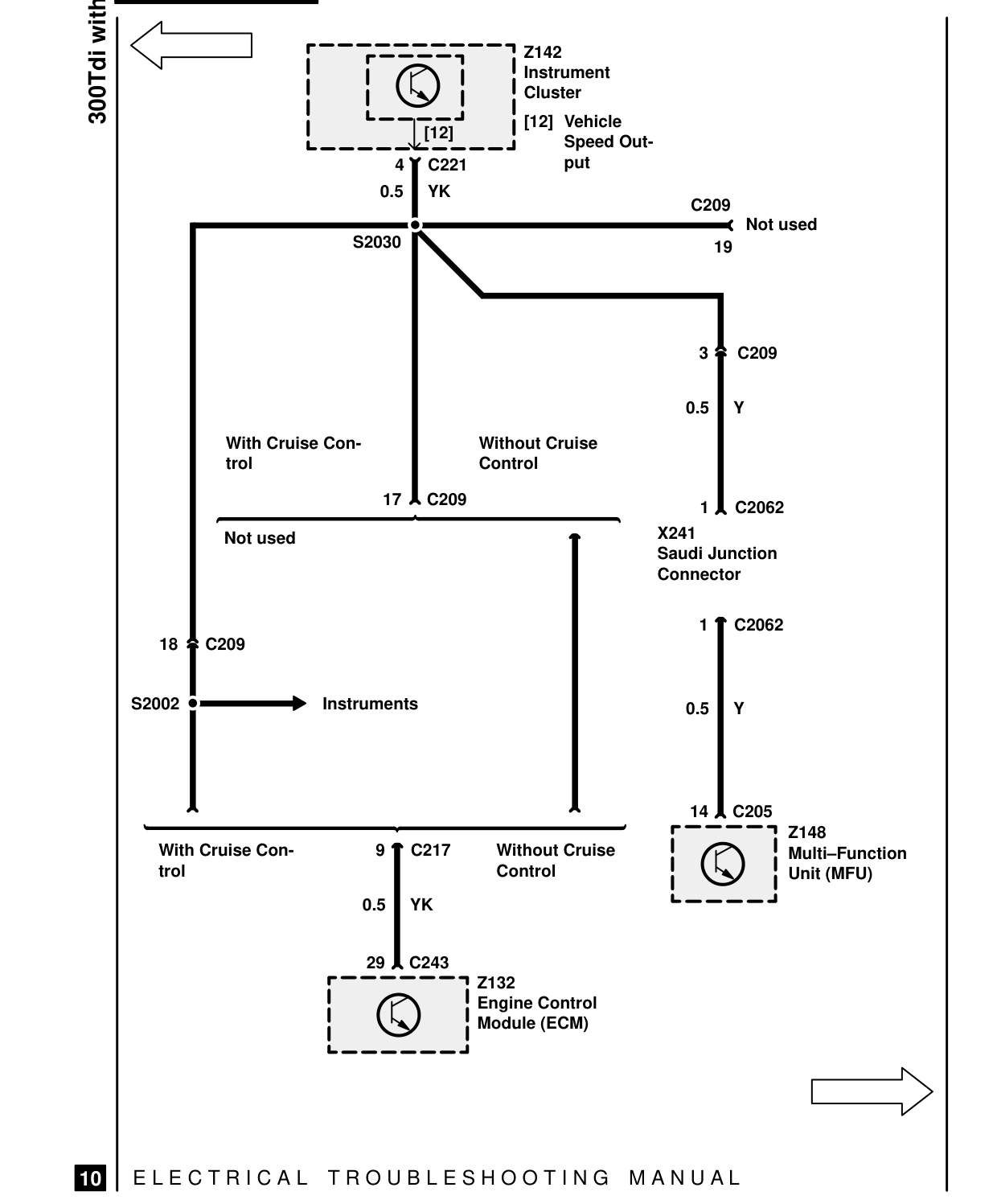

300Tdi – circuit diagram

300TDI – CIRCUIT DIAGRAM

300Tdi with EDC [12] 4 C221 0.5 YK

S2030

With Cruise Con- trol

17 C209

Not used

18 C209

S2002 Instruments

9 C217 With Cruise Con- trol

0.5 YK

29 C243

E L E C T R I C A L T R O U B L E S H O O T I N G

10

Z142 Instrument Cluster [12] Vehicle Speed Out- put

C209 Not used 19

3 C209

0.5 Y

Without Cruise Control

1 C2062 X241 Saudi Junction Connector

1 C2062

0.5 Y

14 C205 Z148 Without Cruise Multi-Function Control Unit (MFU)

Z132 Engine Control Module (ECM)

M A N U A L
