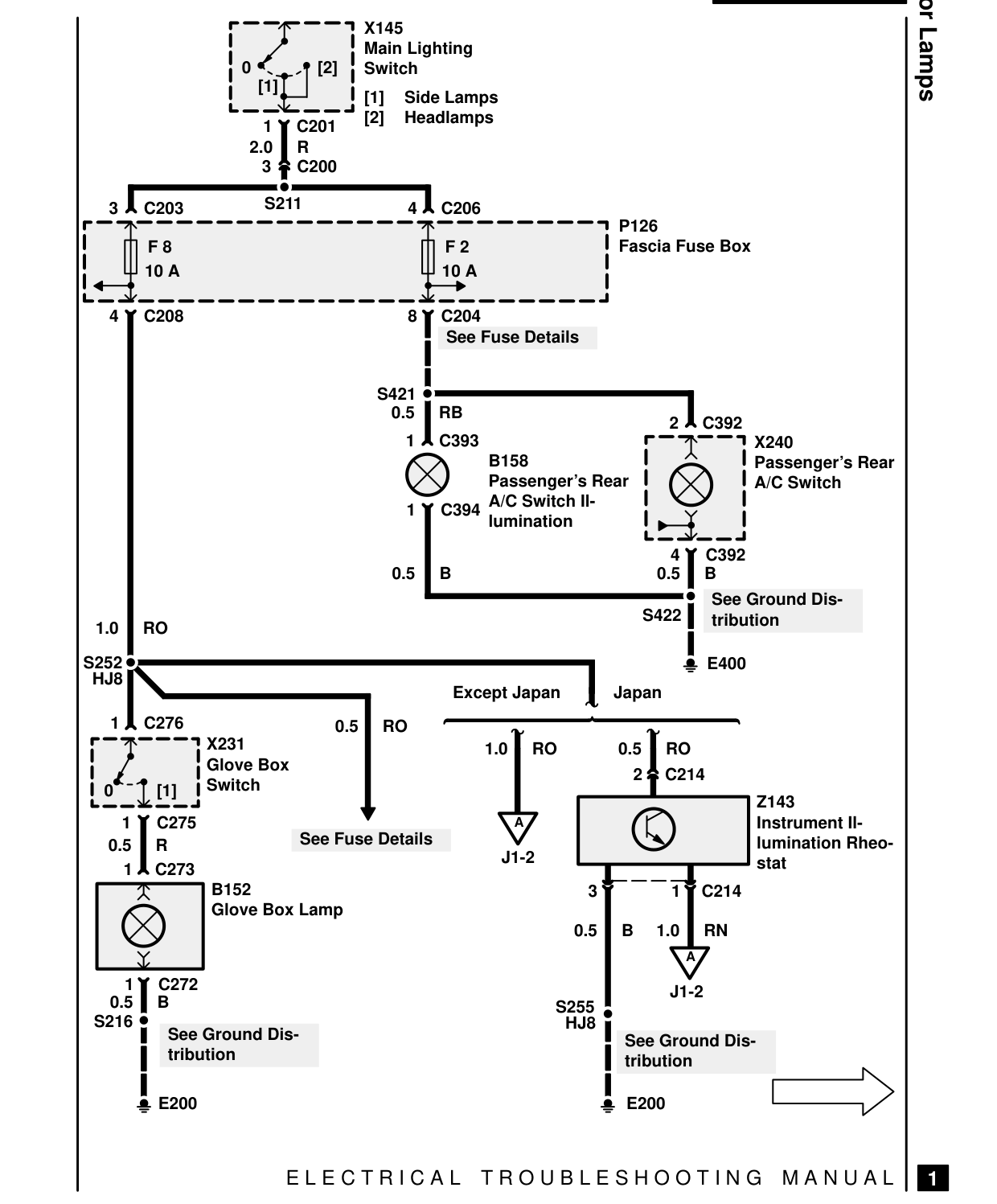

Interior lamps – circuit diagram

INTERIOR LAMPS – CIRCUIT DIAGRAM

X145 Main Lighting 0 [2] Switch [1] [1] Side Lamps [2] Headlamps 1 C201 2.0 R 3 C200

S211 3 C203 4 C206

F 8 F 2 10 A 10 A

4 C208 8 C204 See Fuse Details

S421 0.5 RB 1 C393

1 C394

0.5 B

1.0 RO

S252 HJ8 Except Japan 1 C276 0.5 RO X231 Glove Box Switch 0 [1] 1 C275 See Fuse Details 0.5 R 1 C273 B152 Glove Box Lamp

1 C272 0.5 B S216 See Ground Dis- tribution

E200

E L E C T R I C A L

Interior Lamps

P126 Fascia Fuse Box

2 C392 X240 B158 Passenger’s Rear Passenger’s Rear A/C Switch A/C Switch Il- lumination

4 C392 0.5 B See Ground Dis- S422 tribution

E400 Japan

0.5 RO 1.0 RO 2 C214 Z143 Instrument Il- A lumination Rheo- J1-2 stat 3 1 C214

0.5 B 1.0 RN A

J1-2 S255 HJ8 See Ground Dis- tribution

E200
