Interior lampsInterior lamps – circuit diagram

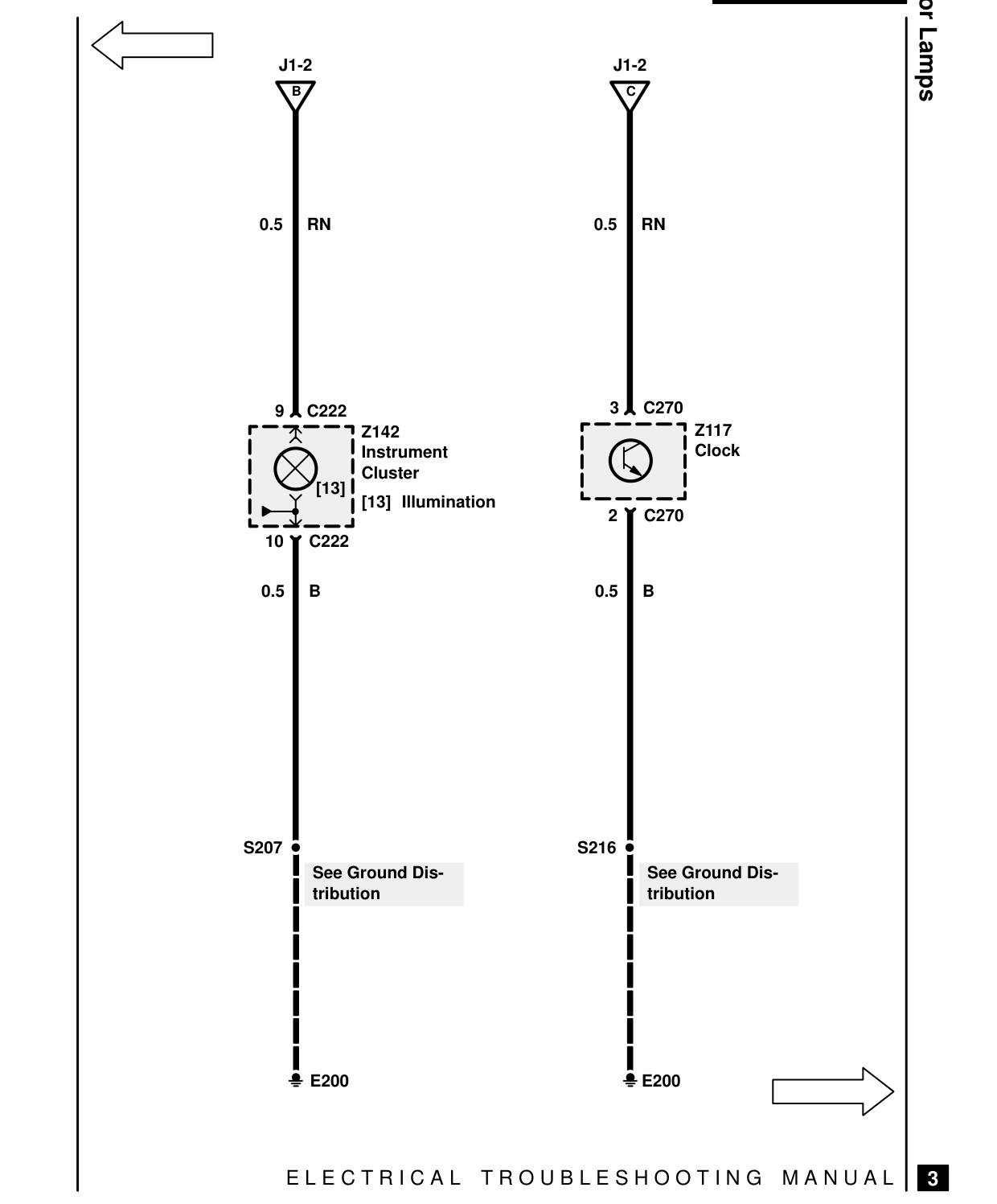

INTERIOR LAMPS – CIRCUIT DIAGRAM

J1-2 B

0.5 RN

9 C222 Z142 Instrument Cluster [13] [13] Illumination

10 C222

0.5 B

S207 See Ground Dis- tribution

E200

E L E C T R I C A L

Interior Lamps J1-2 C

0.5 RN

3 C270 Z117 Clock

2 C270

0.5 B

S216 See Ground Dis- tribution

E200

T R O U B L E S H O O T I N G M A N U A L

3
