Interior lamps – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Interior lamps – circuit diagram

Interior lampsInterior lamps – circuit diagram

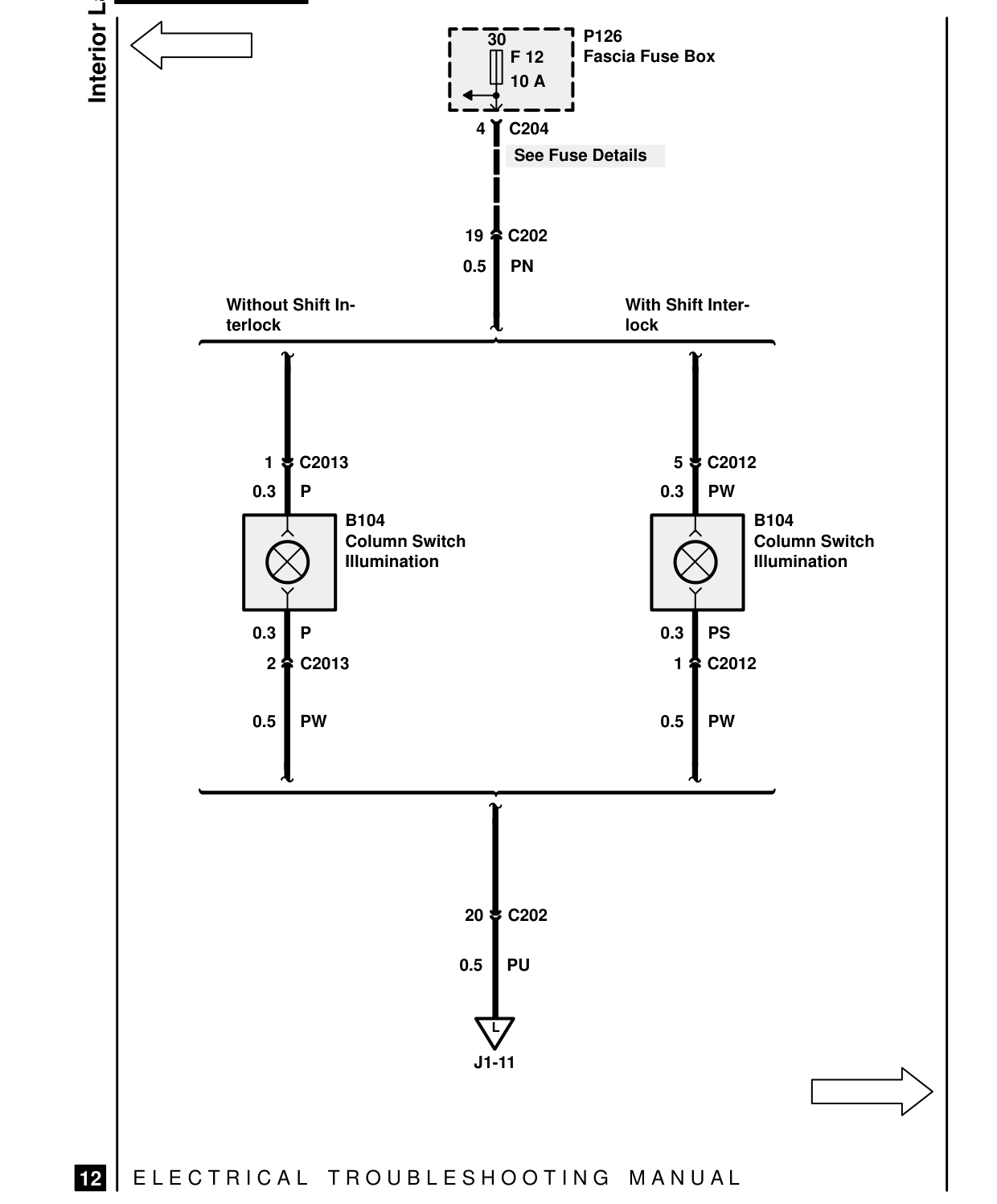

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps

Without Shift In- terlock

1 C2013 0.3 P B104 Column Switch Illumination

0.3 P 2 C2013

0.5 PW

E L E C T R I C A L T R O U B L E S H O O T I N G

12

P126 30 Fascia Fuse Box F 12 10 A

4 C204 See Fuse Details

19 C202 0.5 PN

With Shift Inter- lock

5 C2012 0.3 PW B104 Column Switch Illumination

0.3 PS 1 C2012

0.5 PW

20 C202

0.5 PU

L

J1-11

M A N U A L

26 Body & interior
