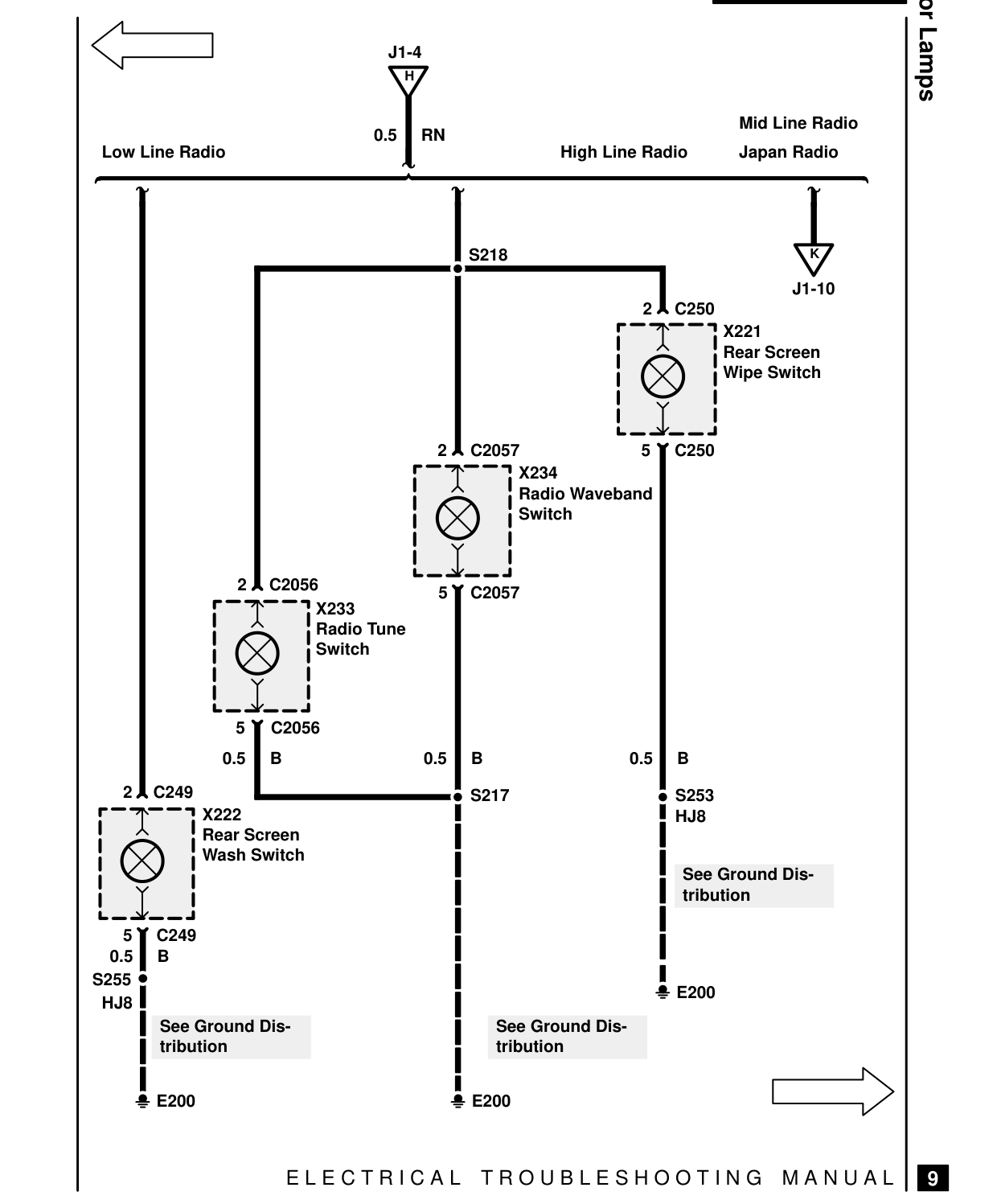

Interior lamps – circuit diagram

INTERIOR LAMPS – CIRCUIT DIAGRAM

J1-4 H

0.5 RN Low Line Radio

S218

2 C2057

2 C2056 5 C2057 X233 Radio Tune Switch

5 C2056 0.5 B 0.5 B

2 C249 S217 X222 Rear Screen Wash Switch

5 C249 0.5 B S255 HJ8 See Ground Dis- tribution

E200 E200

E L E C T R I C A L

Interior Lamps Mid Line Radio High Line Radio Japan Radio

K

J1-10 2 C250 X221 Rear Screen Wipe Switch

5 C250 X234 Radio Waveband Switch

0.5 B

S253 HJ8

See Ground Dis- tribution

E200

See Ground Dis- tribution

T R O U B L E S H O O T I N G M A N U A L

9
