Interior lamps – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Interior lamps – circuit diagram

Interior lampsInterior lamps – circuit diagram

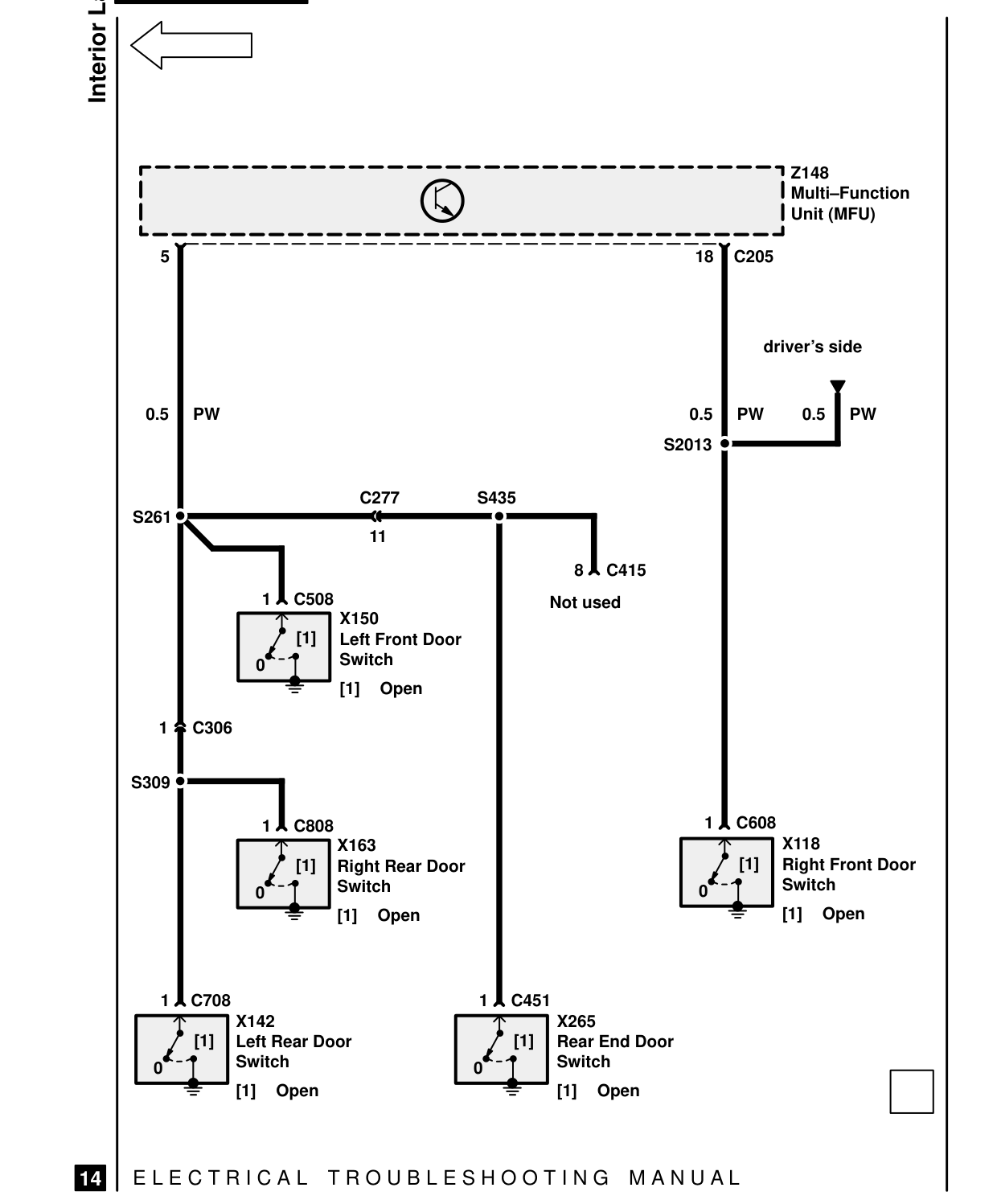

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps

5

0.5 PW

C277 S261 11

1 C508 X150 [1] Left Front Door Switch 0 [1] Open

1 C306

S309

1 C808 X163 [1] Right Rear Door Switch 0 [1] Open

1 C708 X142 [1] Left Rear Door Switch 0 [1] Open

E L E C T R I C A L T R O U B L E S H O O T I N G

14

Z148 Multi-Function Unit (MFU)

18 C205

driver’s side

0.5 PW 0.5 PW S2013

S435

8 C415 Not used

1 C608 X118 [1] Right Front Door Switch 0 [1] Open

1 C451 X265 [1] Rear End Door Switch 0 [1] Open

M A N U A L

26 Body & interior
