Interior lamps – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Interior lamps – circuit diagram

Interior lampsInterior lamps – circuit diagram

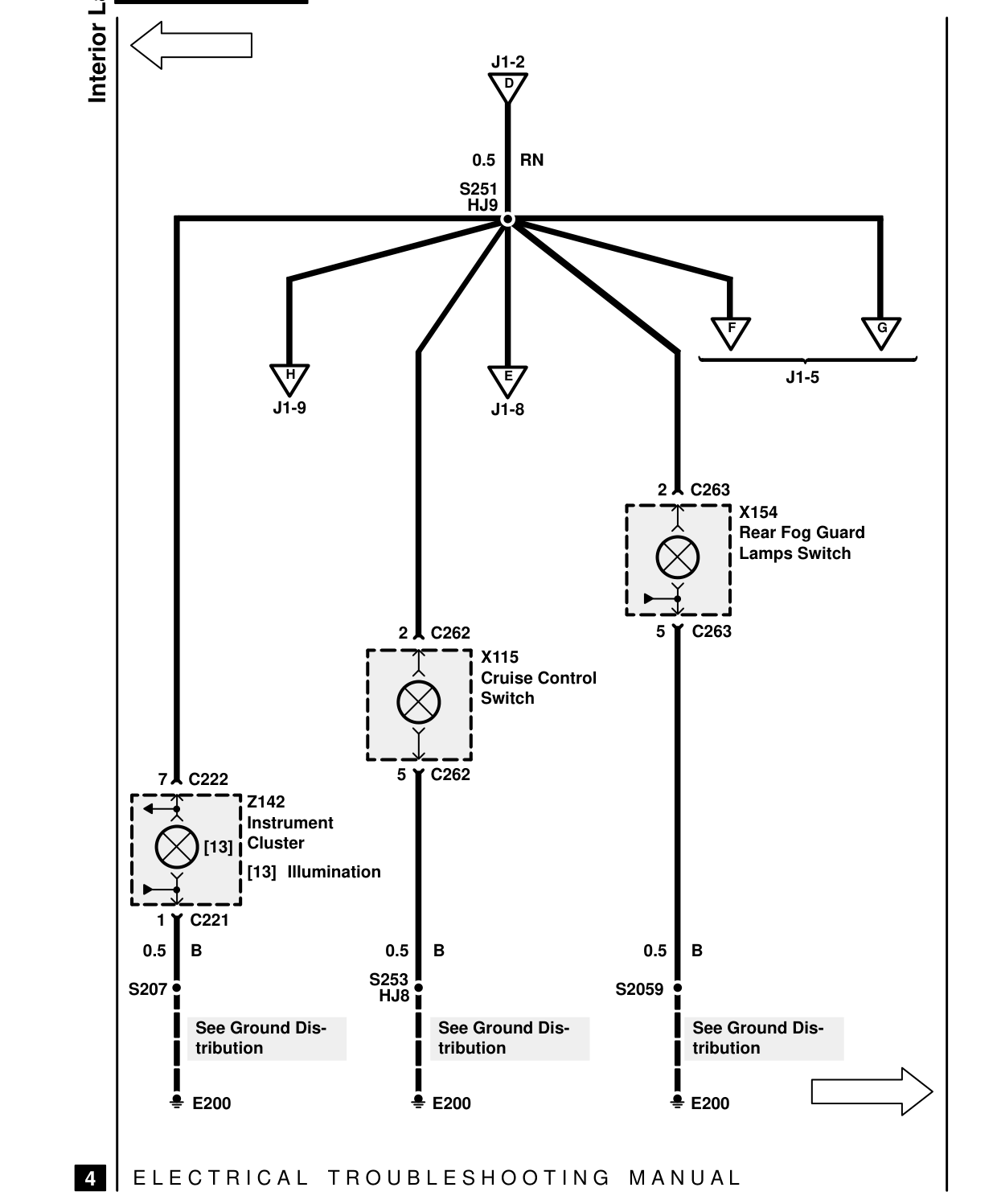

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps

H

J1-9

2 C262

5 C262 7 C222 Z142 Instrument Cluster [13] [13] Illumination

1 C221 0.5 B 0.5 B S253 S207 HJ8 See Ground Dis- See Ground Dis- tribution tribution

E200 E200

E L E C T R I C A L T R O U B L E S H O O T I N G

4

J1-2 D

0.5 RN S251 HJ9

F G

J1-5 E

J1-8

2 C263 X154 Rear Fog Guard Lamps Switch

5 C263 X115 Cruise Control Switch

0.5 B

S2059

See Ground Dis- tribution

E200

M A N U A L

26 Body & interior
