Circuit diagram › Headlamps – circuit diagram

HeadlampsHeadlamps – circuit diagram

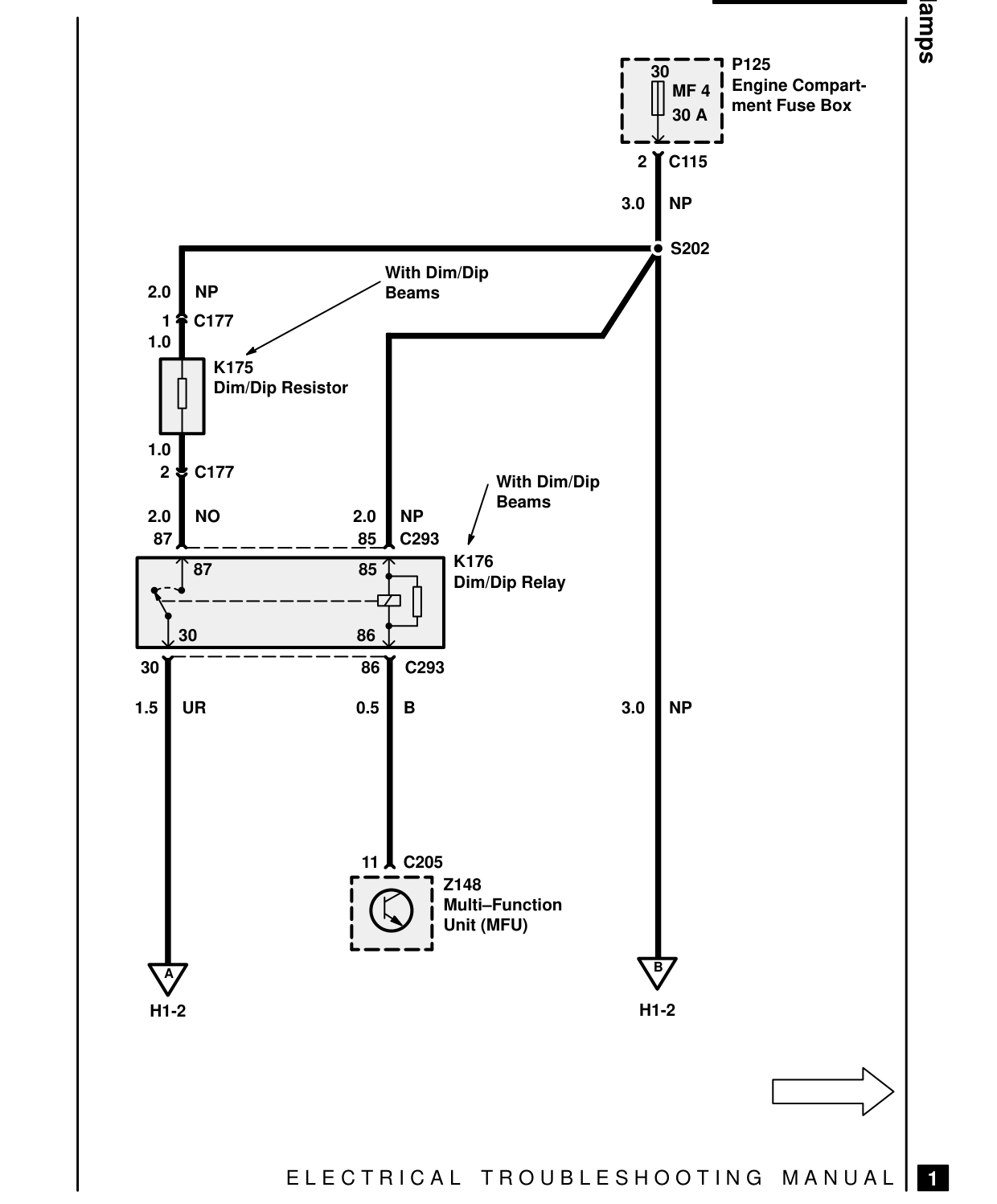

HEADLAMPS – CIRCUIT DIAGRAM

With Dim/Dip 2.0 NP Beams 1 C177 1.0 K175 Dim/Dip Resistor

1.0 2 C177

2.0 NO 2.0 NP 87 85 C293 K176 87 85 Dim/Dip Relay

30 86 C293 30 86

1.5 UR 0.5 B

11 C205 Z148 Multi-Function Unit (MFU)

A

H1-2

E L E C T R I C A L

Headlamps P125 30 Engine Compart- MF 4 ment Fuse Box 30 A

2 C115

3.0 NP

S202

With Dim/Dip Beams

3.0 NP

B

H1-2
