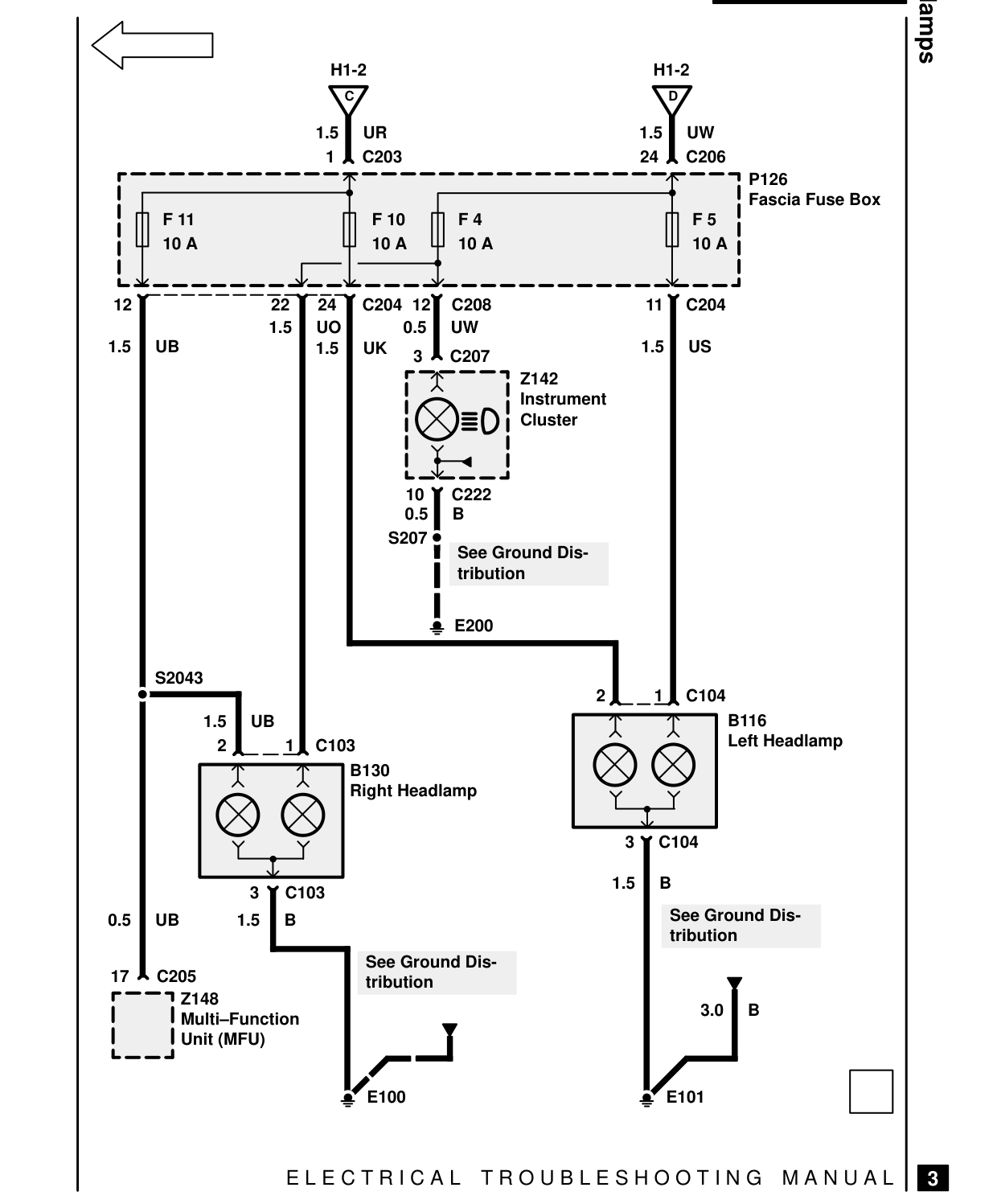

Headlamps – circuit diagram

HEADLAMPS – CIRCUIT DIAGRAM

H1-2 C

1.5 UR 1 C203

F 11 F 10 F 4 10 A 10 A 10 A

12 C208 22 C204 12 24 0.5 UW 1.5 UO 1.5 UB 1.5 UK 3 C207

10 C222 0.5 B S207 See Ground Dis- tribution

E200

S2043

1.5 UB 1 C103 2 B130 Right Headlamp

3 C103 1.5 B 0.5 UB

See Ground Dis- 17 C205 tribution Z148 Multi-Function Unit (MFU)

E100

E L E C T R I C A L

Headlamps H1-2 D

1.5 UW 24 C206 P126 Fascia Fuse Box F 5 10 A

11 C204

1.5 US Z142 Instrument Cluster

1 C104 2 B116 Left Headlamp

3 C104

1.5 B See Ground Dis- tribution

3.0 B

E101
