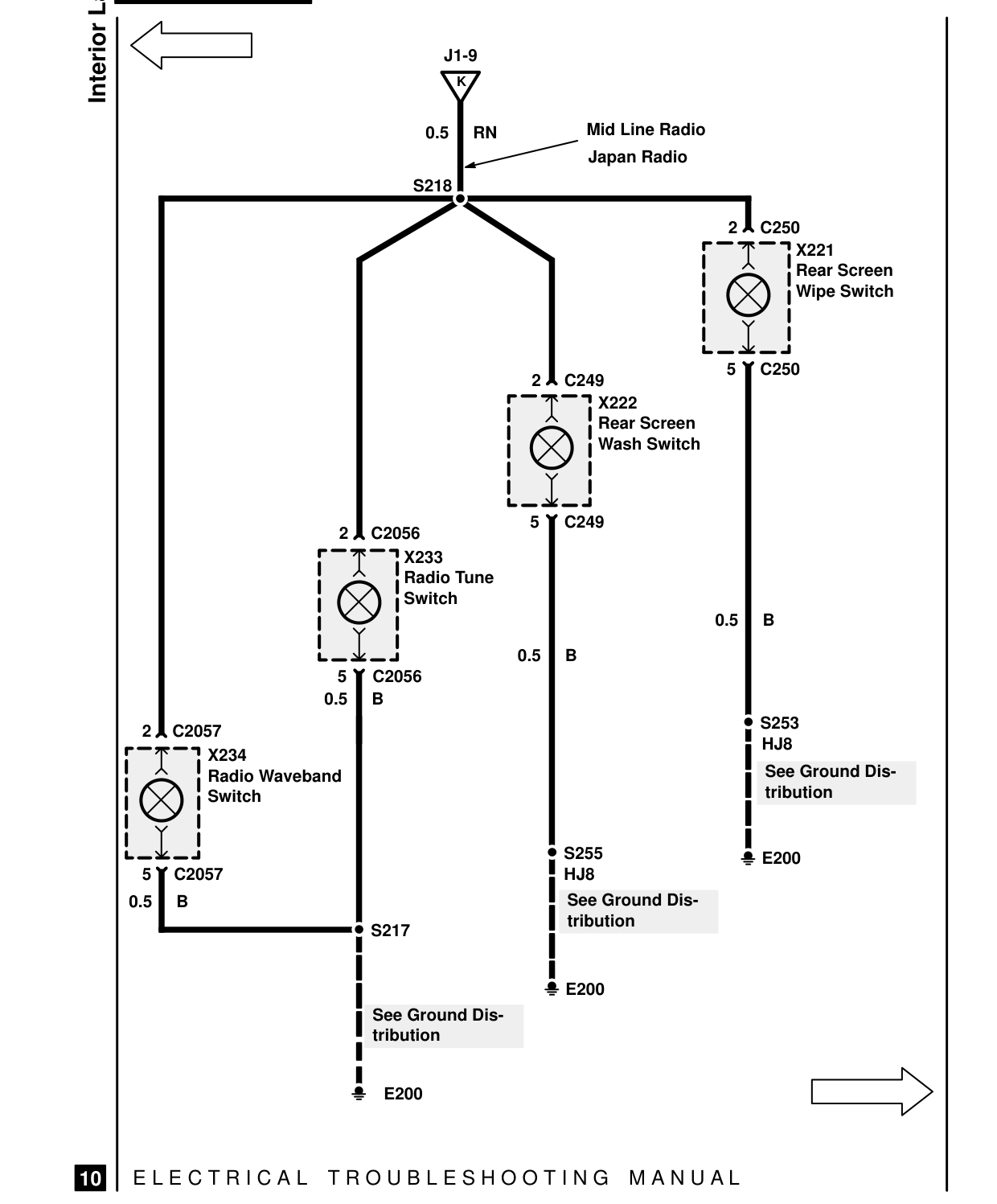

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps J1-9

0.5

S218

2 C2056 X233 Radio Tune Switch

5 C2056 0.5 B 2 C2057 X234 Radio Waveband Switch

5 C2057 0.5 B S217

See Ground Dis- tribution

E200

E L E C T R I C A L T R O U B L E S H O O T I N G

10

K

Mid Line Radio RN Japan Radio

2 C250 X221 Rear Screen Wipe Switch

5 C250 2 C249 X222 Rear Screen Wash Switch

5 C249

0.5 B

0.5 B

S253 HJ8 See Ground Dis- tribution

S255 E200 HJ8 See Ground Dis- tribution

E200
