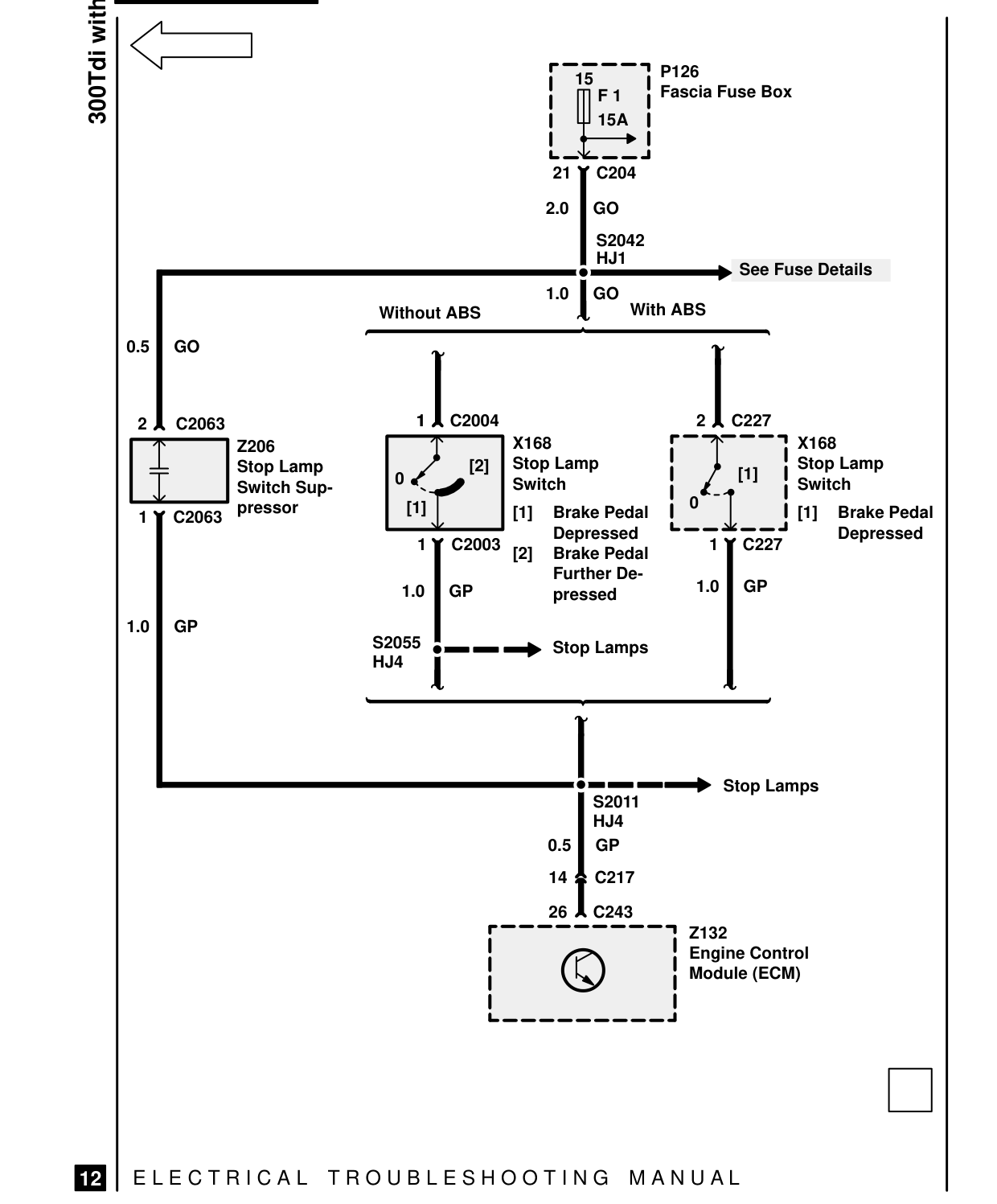

300Tdi – circuit diagram

300TDI – CIRCUIT DIAGRAM

300Tdi with EDC

Without ABS

0.5 GO

1 1 C2004 2 C2063 Z206 Stop Lamp 0 Switch Sup- pressor [1] 1 C2063 1 C2003

1.0 GP

1.0 GP S2055 HJ4

E L E C T R I C A L T R O U B L E S H O O T I N G

12

P126 15 Fascia Fuse Box F 1 15A

21 C204

2.0 GO S2042 HJ1 See Fuse Details 1.0 GO With ABS

2 C227 X168 X168 Stop Lamp Stop Lamp [2] [1] Switch Switch 0 [1] Brake Pedal [1] Brake Pedal Depressed Depressed 1 C227 [2] Brake Pedal Further De- 1.0 GP pressed

Stop Lamps

Stop Lamps S2011 HJ4 0.5 GP 14 C217

26 C243 Z132 Engine Control Module (ECM)

M A N U A L
