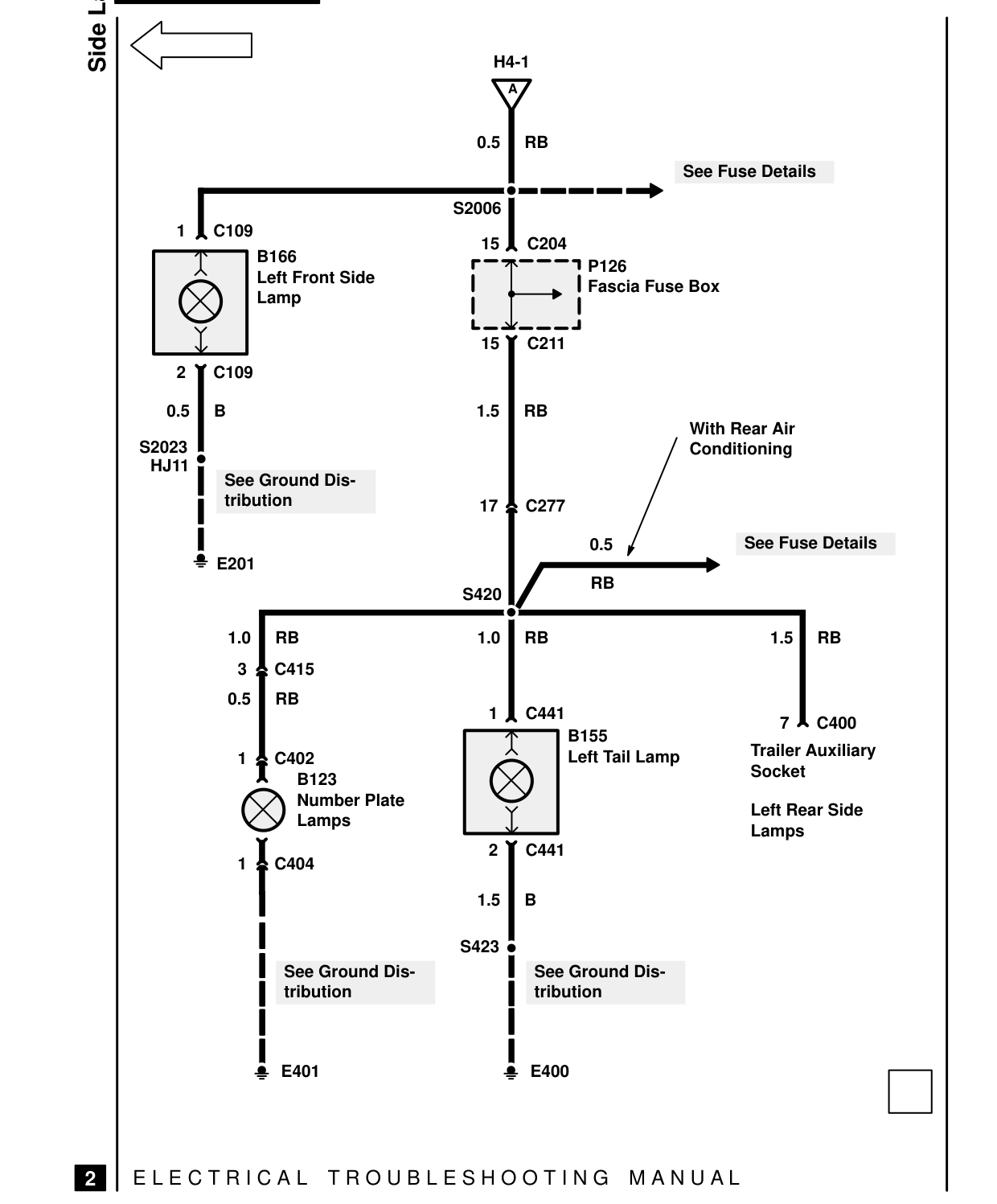

Side lamps – circuit diagram

SIDE LAMPS – CIRCUIT DIAGRAM

Side Lamps

1 C109 B166 Left Front Side Lamp

2 C109

0.5 B

S2023 HJ11 See Ground Dis- tribution

E201

1.0 RB C415 3 0.5 RB

1 C402 B123 Number Plate Lamps

1 C404

See Ground Dis- tribution

E401

E L E C T R I C A L T R O U B L E S H O O T I N G

2

H4-1 A

0.5 RB See Fuse Details

S2006

15 C204 P126 Fascia Fuse Box

15 C211

1.5 RB With Rear Air Conditioning

17 C277

See Fuse Details 0.5

RB S420

1.5 RB 1.0 RB

1 C441 7 C400 B155 Trailer Auxiliary Left Tail Lamp Socket

Left Rear Side Lamps 2 C441

1.5 B

S423 See Ground Dis- tribution

E400

M A N U A L
