Discovery II
BODY CONTROL UNIT
DESCRIPTION AND OPERATION
86-3-7

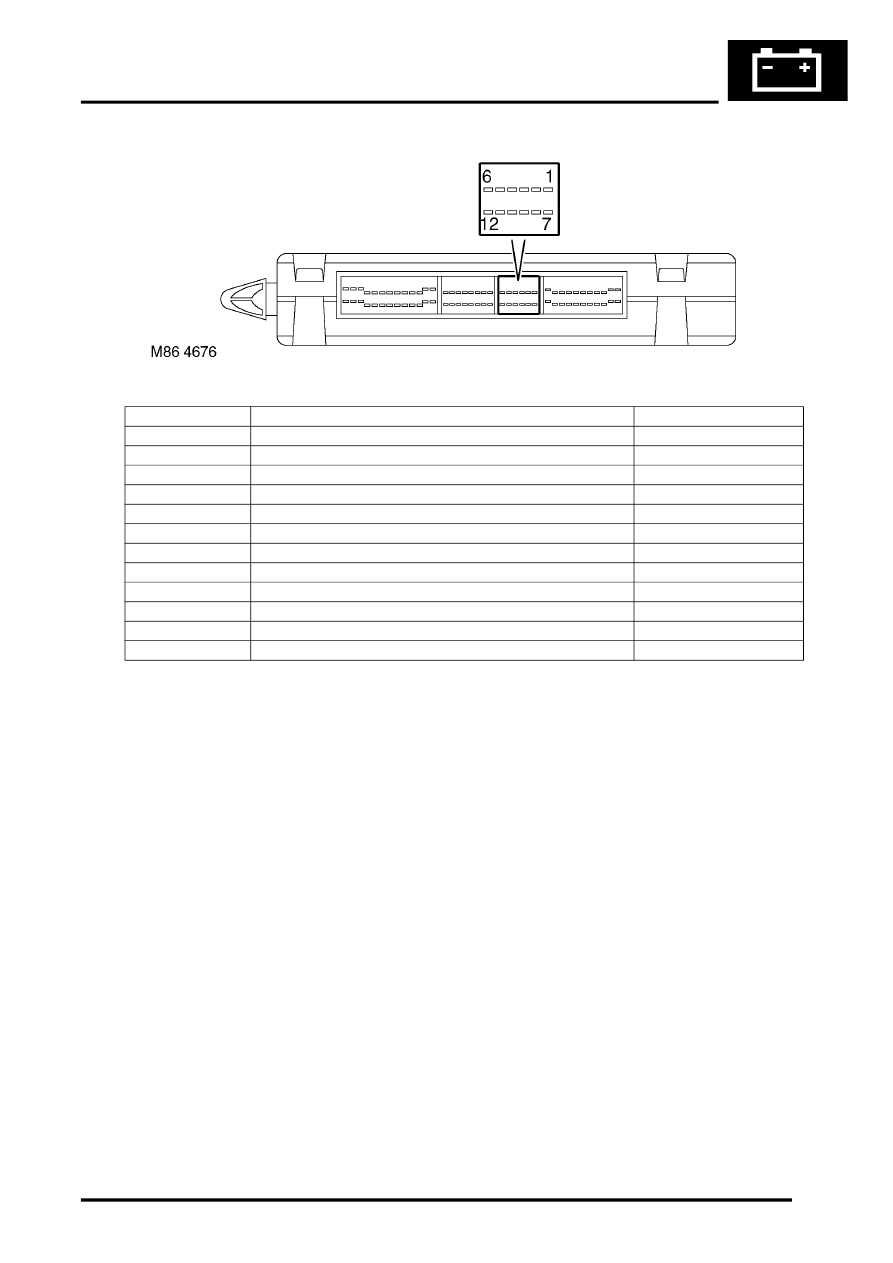

C0663 connector pin details
Pin No.
Description
Input/Output
1
Crank selected
Input
2
LH direction indicator selected
Input
3
Driver/Passenger seat enable
Output
4
Front fog lamps
Output
5
Heated rear screen selected
Input
6
Ultrasonic input
Input
7
Gear position switch (Z contacts)
Input
8
Ultrasonic power supply
Output
9
Courtesy lamps
Output
10
Feed to gear position switch (W, X, Y, Z contacts)
Output
11
Park/Neutral selected
Input
12
Hazard warning lamps
Input
