MANUAL GEARBOX - R380
REPAIRS
37-13
12. Remove 8 nuts securing front propeller shaft to
transfer gearbox and differential.
13. Remove propeller shaft.
14. Repeat above operation for rear propeller
shaft.

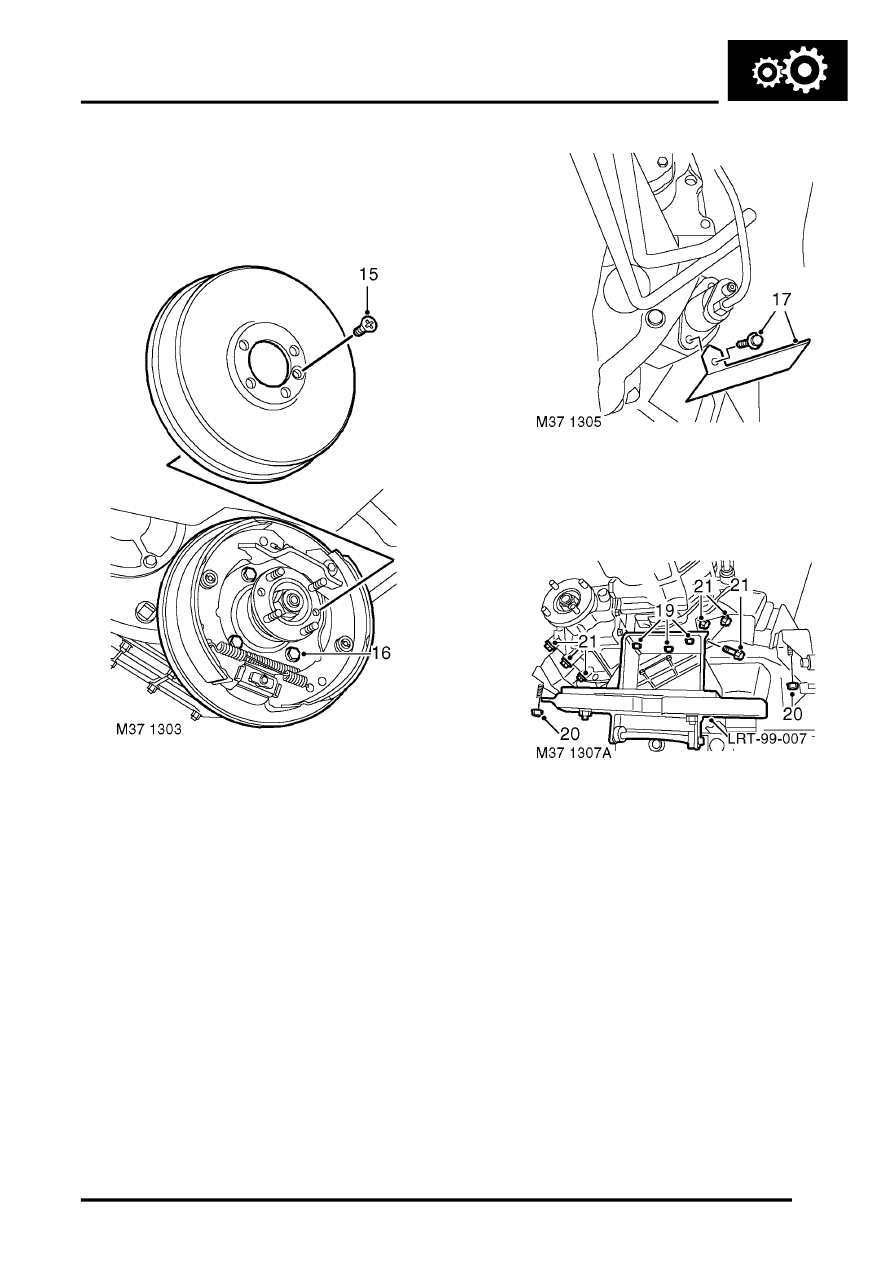

15. Remove handbrake drum retaining screw and
remove handbrake drum.
16. Remove 4 bolts from handbrake back plate,
release back plate and tie aside.
17. Remove 2 bolts securing clutch slave cylinder,
collect heat shield, release slave cylinder and
position aside.
18. Fit support plate LRT-99-007 to gearbox jack.
19. Position gearbox jack and support plate to
gearbox and secure with 3 bolts.
20. Support the weight of gearbox, remove nuts
securing gearbox mountings to body.
21. Remove 8 bolts securing mountings to
gearbox, raise gearbox and remove both
mountings.
