STEERING

REPAIRS

57-35

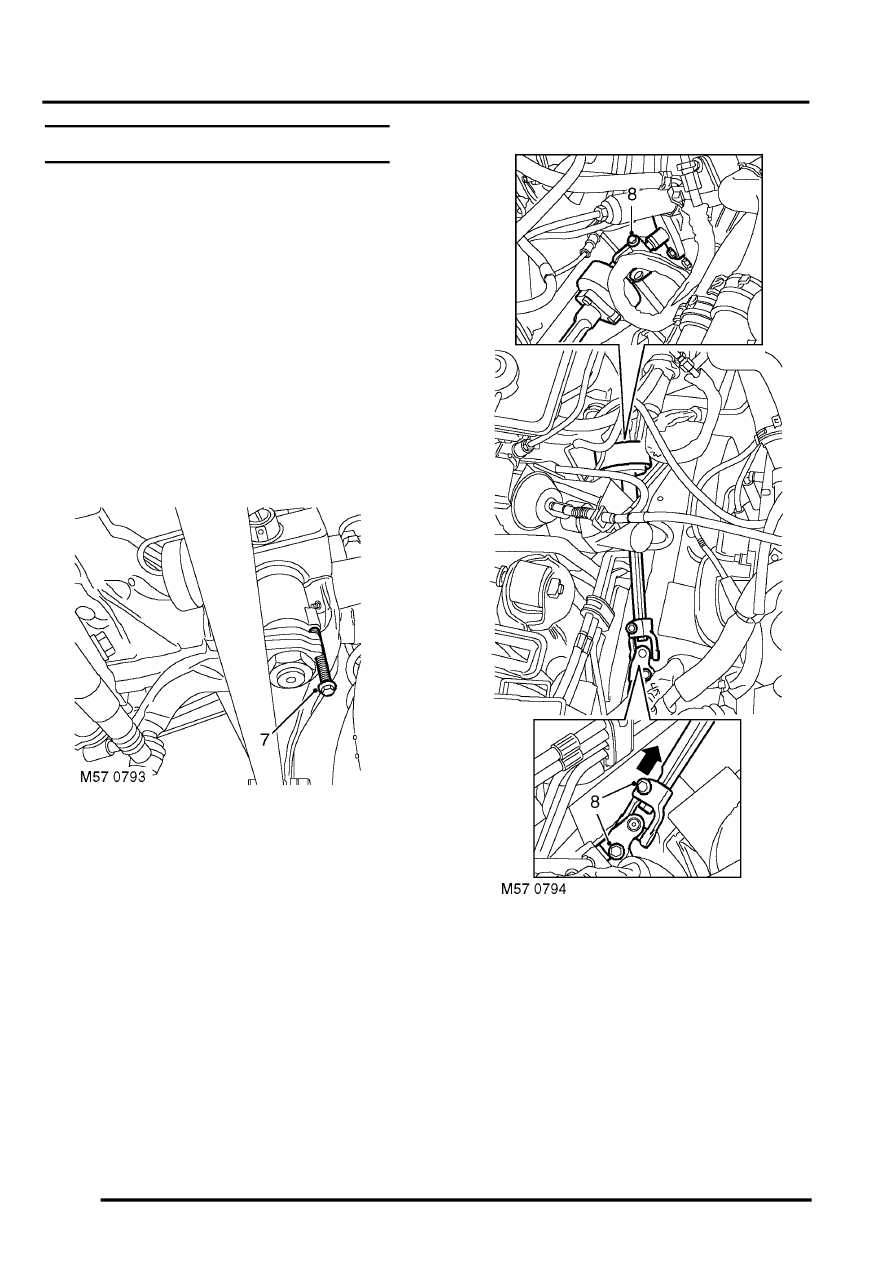

11. Remove bolt securing PAS pipe bracket to

steering box, release pipes and discard 'O'
rings.

CAUTION: Always fit plugs to open
connections to prevent contamination.

12. Release 5 clips securing hoses to coolant rail

release and disconnect hoses.

13. Models with ACE:  Remove bolt securing ACE

pipes to chassis to gain access to coolant rail
bolt.

14. Remove bolt securing coolant rail.

15. Release 2 clips securing coolant rails and

remove coolant rail from vehicle.

16. Remove securing nut and bolt and release

Panhard rod.
