BrakesABS control schematic

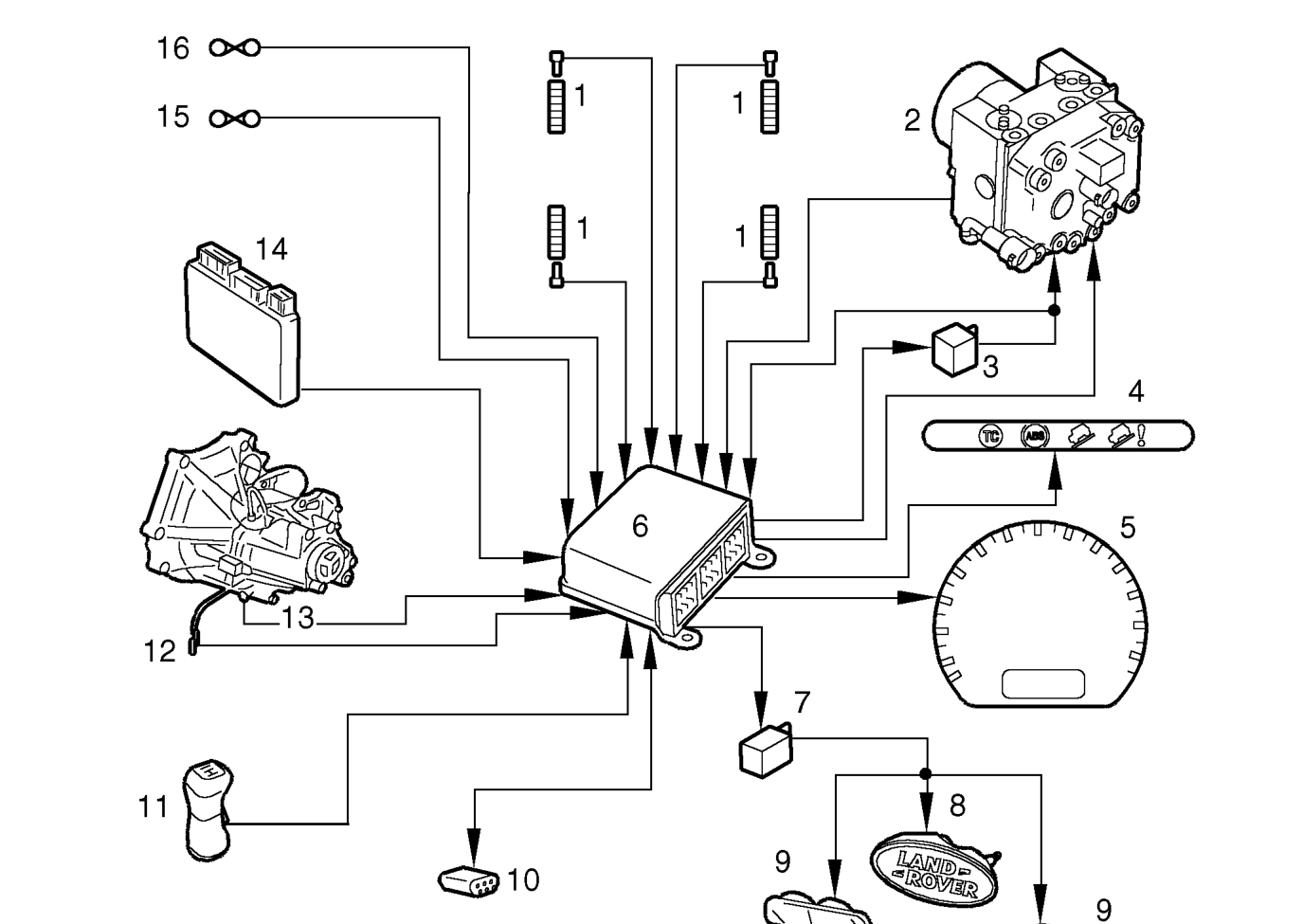

ABS control schematic

1. ABS sensor
2. ABS modulator
3. Return pump relay
4. Warning lamps
5. Speedometer
6. ABS ECU
7. Brake lamp relay
8. Centre high mounted stop lamp
9. Bumper brake lamp
10. Diagnostic socket
11. HDC switch
12. Reverse gear switch
13. First gear switch
14. Engine control module
15. Battery power supply
16. Ignition power supply
