Land Rover Freelander Workshop Manual (1998-2000)22 · Brakes
22 · Brakes

Hydraulic system schematic - ABS (Brakes)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Description and operation › Hydraulic system schematic - ABS
BrakesHydraulic system schematic - ABS

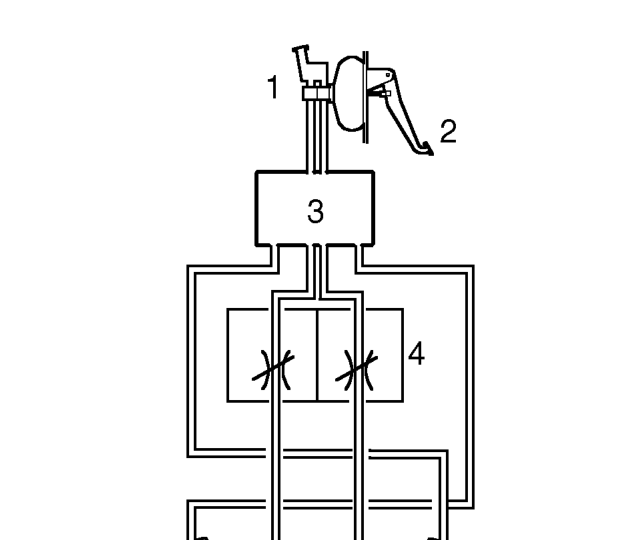

Hydraulic system schematic - ABS

Hydraulic system schematic - abs
  1. Servo/Master cylinder assembly
  2. Brake pedal
  3. ABS modulator
  4. Pressure conscious reducing valve
  5. Front brake
  6. Rear brake
